Thank you for showing your condence in us by purchasing the BEHRINGER ULTRA METAL UM300.
This high-quality eects pedal comes with a dual-gain circuitry that enables you to produce super thick,
tube-like distortion plus endless sustain. Thanks to its high-performance features you will achieve the
most extreme and sought-after hard rock or heavy metal distortion sounds.

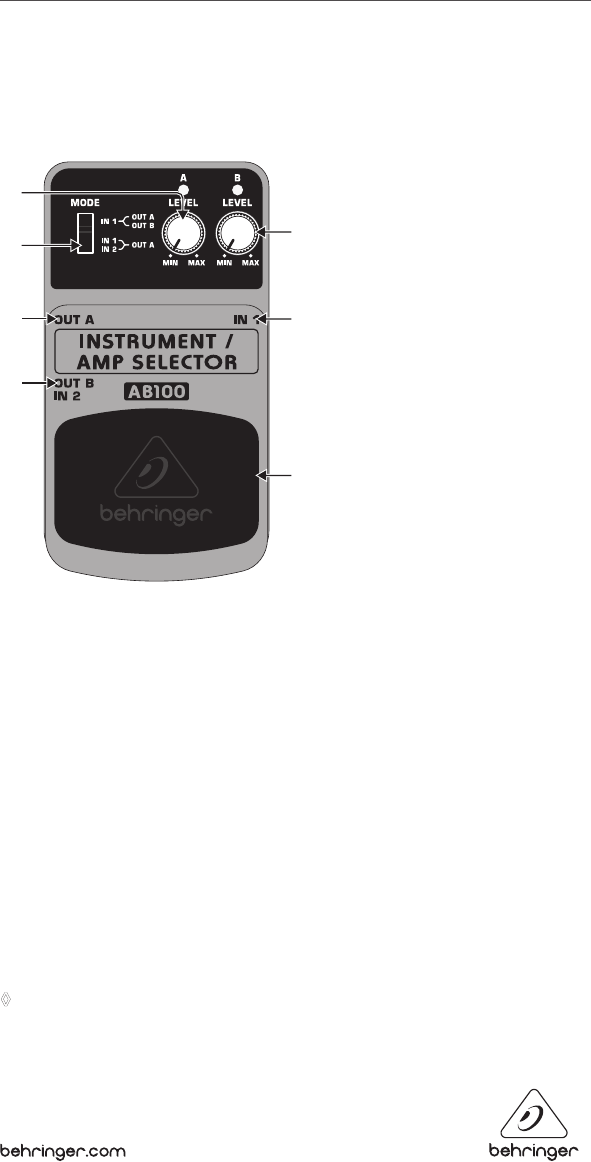

1. Controls
(1) IN 1: this ¼" TS jack is the rst AB100 input. Plug in an instrument here (guitar, bass, etc.).
(2) OUT A: this ¼" TS jack is the rst AB100 output. Plug in an amp or an eect here.
(3) OUT B/IN 2: this ¼" TS jack can be used as a second output or a second input, depending on the
position of selector (4).
(4) The MODE selector adapts the AB100 to your system: If you play one instrument and two amps,
set MODE in the upper position to get one input for two outputs. In this case, connector (6) serves as
a second output (OUT B). Otherwise, if you play two instruments and one amp, set MODE in the lower
position to get two inputs for one output. In that case, connector (6) serves as a second input (IN 2).
(5) Use the A LEVEL button to set the volume of OUT A. The output is active when the green LED is lit.
(6) When MODE is in the upper position, use the B LEVEL button to set the volume of OUT B. The
output is active when the red LED is lit.
(7) Use the footswitch to noiselessly and instantaneously toggle between two amps (MODE selector in
the upper position) or two instruments (MODE selector in the lower position).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery,
press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.
◊ The AB100 has no on/o switch. As soon as you insert the jack into the in connector,
the AB100 begins running. When not using the AB100, remove the jack from the
in connector. This extends the life of the battery.
The SERIAL NUMBER is located at the bottom of the unit.
(6)
(1)
(7)
(5)
(2)
(3)
(4)
INSTRUMENT/AMP SELECTOR AB100
Universal 2-Mode A/B Footswitch
