Technical Specifications
Version 1.0 February 2006

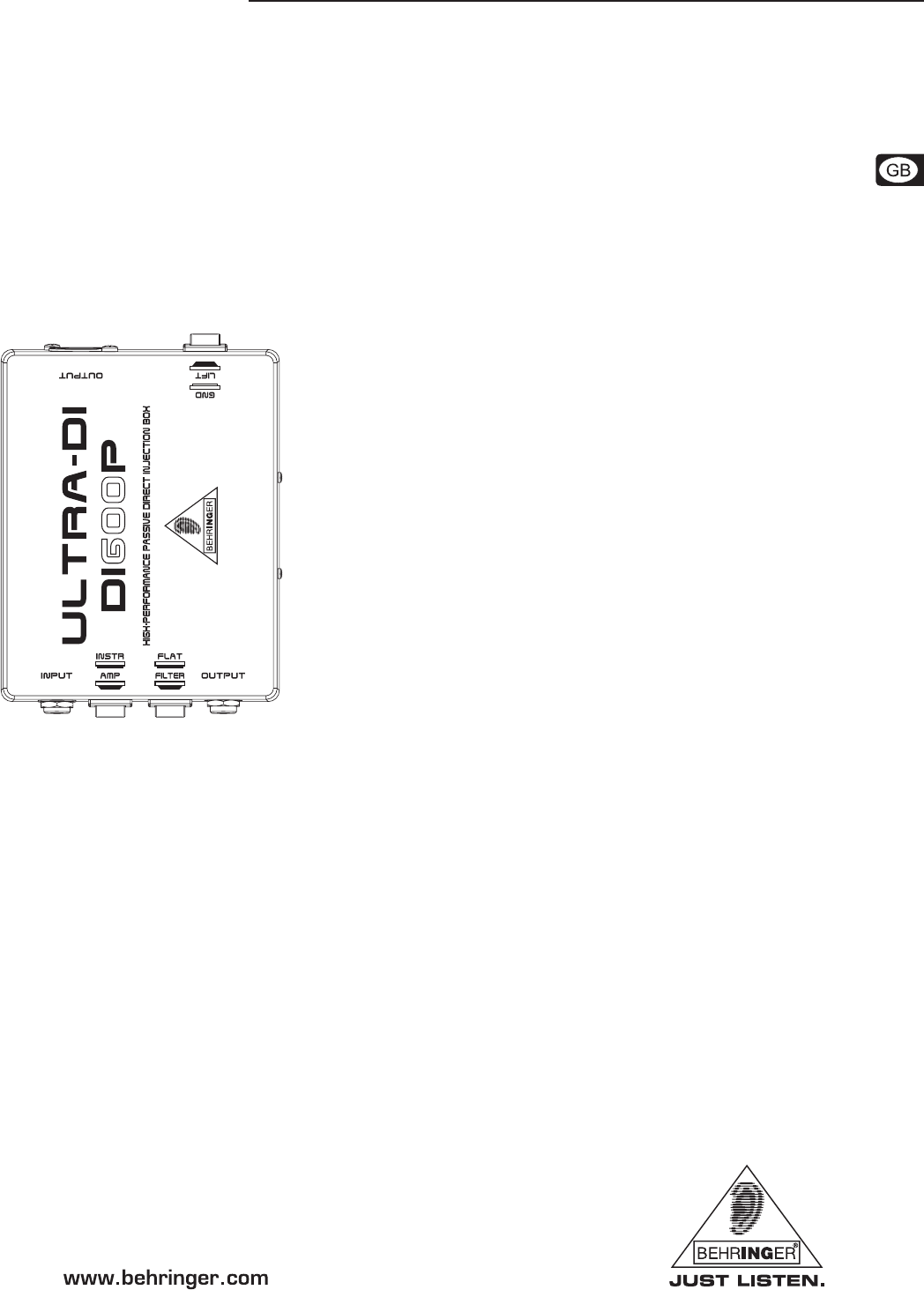

ULTRA-DI DI600P
FEATURES
s Connect your guitar or bass directly to your mixer without losing
tone due to impedance mismatches, long cables and cycle hum
s Converts any unbalanced line-level signal to balanced mic-level output
s Provides impedance and signal matching for the direct connection
of instruments to amplifiers and mixers
s Allows the use of long cables without losing high frequencies
s Thru/Out jack lets you send the unbalanced signal to an onstage
amplifier while the balanced signal is routed to the mixer
s Switchable Inst/Amp input for connecting instruments or amplifier
outputs with up to 3,000 watts
s Filter switch reduces annoying hiss and buzz
s Ground lift switch eliminates typical ground loop problems such as hum
s High-performance transformer for ultimate signal integrity
s Ultra-compact, all-metal and road-suitable housing
s High-quality components and exceptionally rugged construction
ensure long life and durability
s Conceived and designed by BEHRINGER Germany
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made
from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
SPECIFICATIONS
Frequency response 40 Hz (-3 dB) to 20 kHz
THD+N (distortion) 0.003% @ 1 kHz, input level +4 dBu
INPUT ¼" TS (unbalanced)
Level change (input ß output) -20 dB
OUTPUT Balanced XLR
Impedance ratio (input ß output) 110 : 1
INST/AMP switch 30 dB pad
FILTER switch Low pass @ 7.5 kHz (-3 dB)
Dimensions (H x W x D) 1.4" x 5" x 3.75" (35 mm x 128 mm x 95 mm)
Weight approx. 0.66 lbs (0.3 kg)
Technical specifications and appearance subject to change without notice. The information contained herein is correct at the time of printing.
The names of companies, institutions or publications pictured or mentioned and their respective logos are registered trademarks of their
respective owners. Their use neither constitutes a claim of the trademarks by BEHRINGER
®
nor affiliation of the trademark owners with
BEHRINGER
®
. BEHRINGER
®
accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon
any description, photograph or statement contained herein. Colours and specification may vary slightly from product. Products are sold
through our authorised dealers only. Distributors and dealers are not agents of BEHRINGER
®
and have absolutely no authority to bind
BEHRINGER
®
by any express or implied undertaking or representation. No part of this manual may be reproduced or transmitted in any form
or by any means, electronic or mechanical, including photocopying and recording of any kind, for any purpose, without the express written
permission of BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER
®
is a registered trademark.
ALL RIGHTS RESERVED. © 2006 BEHRINGER Spezielle Studiotechnik GmbH,
Hanns-Martin-Schleyer-Str. 36-38, 47877 Willich-Münchheide II, Germany.
Tel. +49 2154 9206 0, Fax +49 2154 9206 4903
