Ultimate Auto-Wah Eects Pedal
Thank you for showing your condence in us by purchasing the BEHRINGER ULTRA WAH UW300.
This high-quality eects pedal delivers auto-wah eects for almost all styles and sounds. Control the
wah eect with your string-picking strength and add an awesome funky touch with the modulation
wah pedal.
1. Controls
(1) The RATE control determines the speed of the wah eect modulation.
(2) The DEPTH control adjusts the sweep range of the eect. Turn it to the right to increase the range.
At minimum position no modulation eect is produced and the wah eect is controlled by your
playing intensity only. In this case the RATE control has no function.
(3) The MANUAL control adjusts the basic frequency where the eect starts working.
High MANUAL settings will decrease the sweep range, because the low end of the frequency
sweep is moved upwards.
(4) The SENS control adjusts the sensitivity of the eect. Nearer maximum position you achieve wah
eect even with soft playing, nearer minimum position the wah eect will not be dependent on
your playing dynamics.
(5) The ON/BATT LED illuminates when the eect is activated. It also serves as a battery
level indicator.
(6) Use the footswitch to activate/deactivate the eect.
(7) Use this ¼" TS IN connector to plug in the instrument cable.
(8) The ¼" TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery
(not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to
scratch the unit.

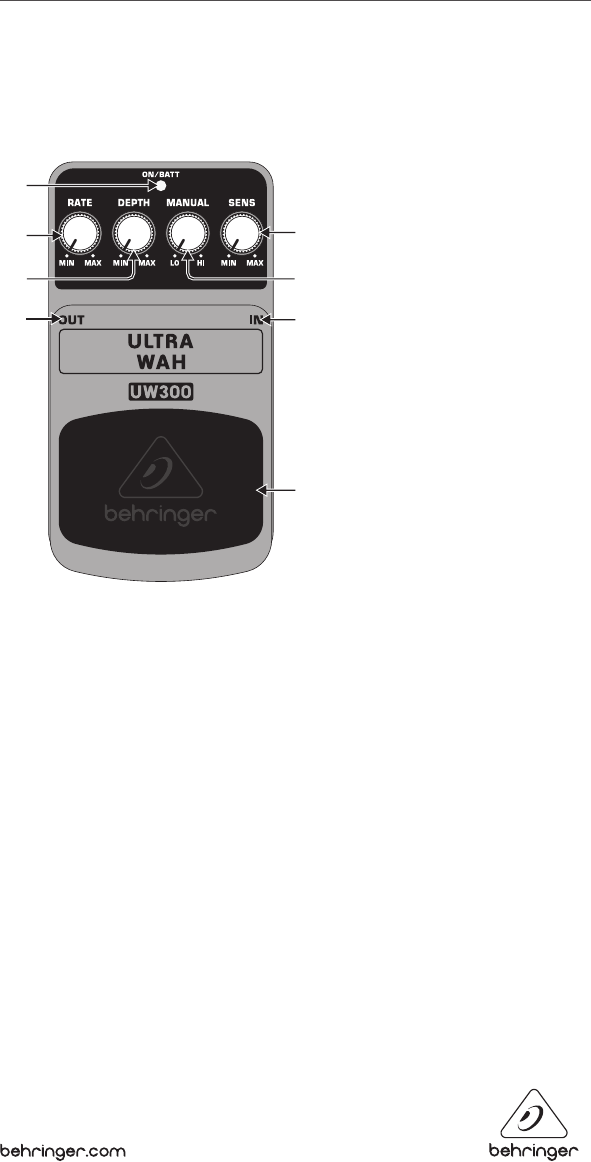

(5)
(1)
(7)
(4)
(6)
(3)(2)
(8)
ULTRA WAH UW300
