VINTAGE TIME MACHINE VM1
Specications 3

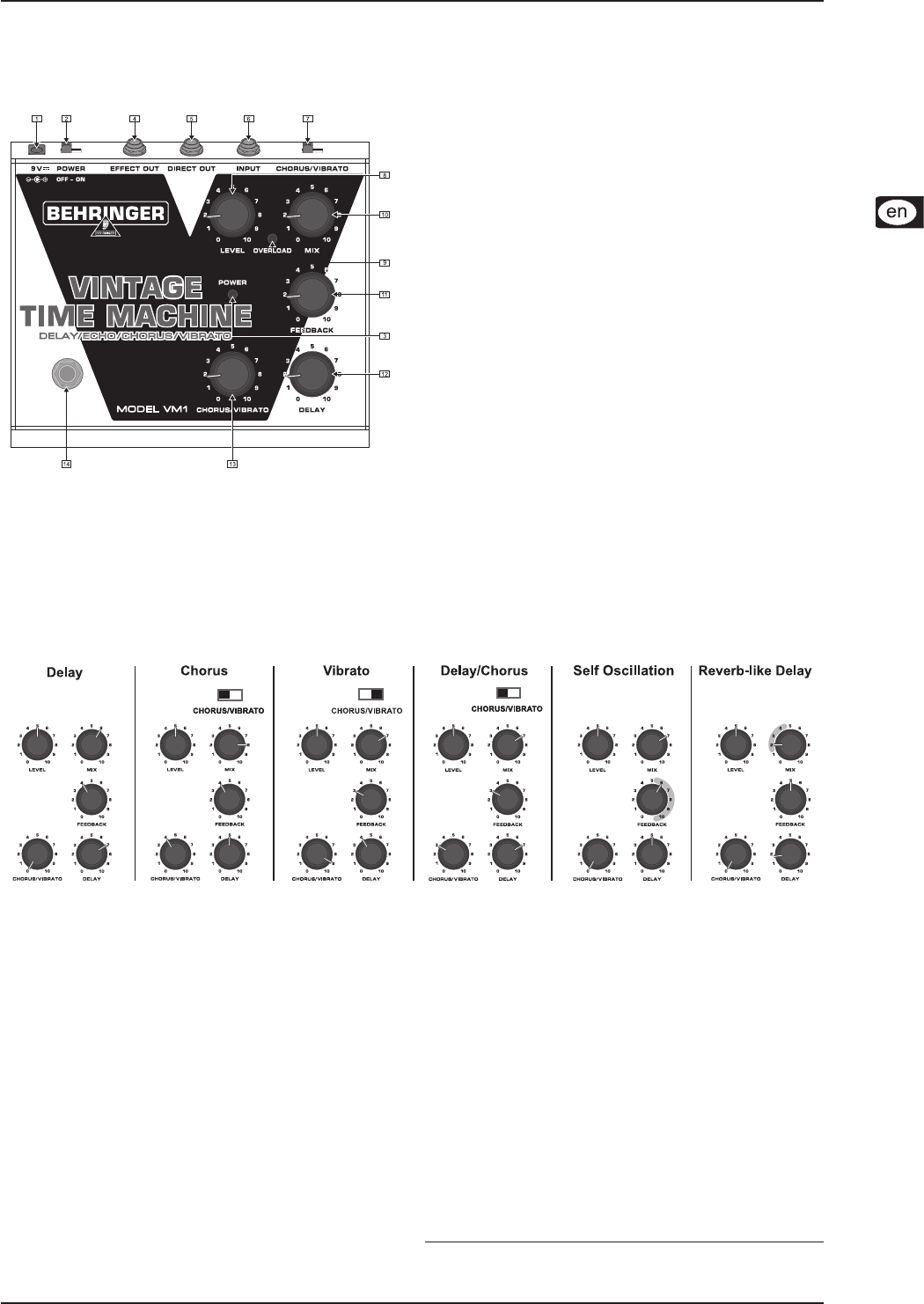

Controls1.
The SERIAL NUMBER is located on the underside.
Use the {1} 9 V_ connection to plug in a 9 V power supply.
Use the {2} POWER switch to activate/deactivate the unit.
The {3} POWER LED lights up when the unit is activated.
The 1/4" TS {4} EFFECT OUT connector sends the signal to
your amp.
The 1/4" TS {5} DIRECT OUT connector always provides the
direct, unaffected signal to feed for example a separate
guitar amp.
Use this 1/4" TS {6} INPUT connector to plug in the instrument
cable.
The {7} CHORUS/VIBRATO switch selects between chorus or
vibrato effect.
The {8} LEVEL control adjusts the input level. The LEVEL control
adjusts the input level.
The {9} OVERLOAD LED illuminates when the input signal is
too high. In this case reduce the input level with the LEVEL
control.
The [10] MIX control adjusts the balance between the effect signal
and the direct signal.
The [11] FEEDBACK control determines the amount of signal
repetitions. Since the output signal is fed back to the input
of the delay line, it is possible to generate a self oscillation
at high settings of this control.
The [12] DELAY control adjusts the time between the direct signal
and the signal repetitions (Delay Time).
The [13] CHORUS/VIBRATO control adjusts the effects speed
of the modulation effect added to the delay. Slow settings
produce a chorus effect while fast settings provide vibrato.
Use the footswitch to activate/deactivate the effect.[14]
Specications4.
IN
Connector 1/4" TS
Impedance 100 kΩ
EFFECT OUT
Connector 1/4" TS
Impedance 1 kΩ
DIRECT OUT
Connector 1/4" TS
Impedance 100 kΩ
POWER SUPPLY
Power supply 9 V_, 100 mA (included)
BEHRINGER PSU-SB
Power connector 2 mm jack, negative center
Power consumption 50 mA
Dimensions (H x W x D) approx. 61 mm (2 2/5")
x 200 mm (7 4/5")
x 172 mm (6 4/5")
Weight approx. 1.07 kg (2.37 lbs)
BEHRINGER is constantly striving to maintain the highest professional standards.
As a result of these efforts, modications may be made from time to time to existing
products without prior notice. Specications and appearance may therefore differ from
those listed or shown.
Warranty3.
For our current warranty terms, please refer to our website at http://www.behringer.com.
Thank you for showing your condence in us by purchasing the BEHRINGER VINTAGE TIME MACHINE VM1. This high-quality classic
effect delivers true analog delay with up to 450 ms of organic echo to rival any tape delay, vibrant chorus and mind-bending vibrato.
Sample settings2.
