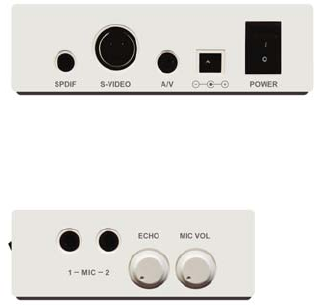

4.2.1.3 Back side
SPDIF connector for digital audio output,
S-Video connector for high-resolution
video output, A/V out connector for 2
Channel audio and composite video output,
9V DC power input terminal, and POWER
ON/OFF Switch are located on the back
side.
4.2.1.4 Left side
Two mini (3.5mm, 1/8 inch) jack connectors for
microphone inputs, microphone volume control
knob and echo volume control knob are located
in left side.
