BEHRINGER V-TONE BASS BDI21
APPLICATIONS
Use with other instruments
The BDI21 is not only for bass guitars. You can try it with other
instruments (e. g. acoustic/electric guitars, keyboards etc.) to
create new sounds and enhance your music. Please make sure
that the input level is not too high to avoid overloading the BDI21.
Direct to a mixing console
For live and studio applications you can connect the balanced
XLR BAL OUT directly to a mic input of a mixing console. Be sure
not to overload the input by using the gain control of the respective
channel. For further information please refer to the users manual
of your mixing console.
Use without instruments
You can use the BDI21 without an instrument as an outboard
processor connected to an insert or an effect path (aux send/
return) of your mixing console to affect the signal of a particular
channel. This way you can enhance existing tracks during
mixdown. For further information please refer to the users manual
of your mixing console.
POWER REQUIREMENTS
Battery:
Utilizes standard 9 V alkaline battery (not included).
Power consumption: approx. 25 mA
Power supply:
ATTENTION: PLEASE USE DC POWER SUPPLY ONLY!
Failure to do so may damage the unit and void the warranty.
DC Power Supply Specifications:
- 9 V DC (regulated), 50 mA minimum
- 2 mm female plug, center negative (-)
WARRANTY
For our current warranty terms, please refer to our website at
http://www.behringer.com.
SPECIFICATIONS
Input
Connector ¼" TS
Impedance 1 MΩ
Output
Connector ¼" TS
Impedance 1 kΩ
Balanced output
Connector XLR
Impedance 200 Ω
Power supply 9 V, >50 mA DC regulated
Power connector 2 mm DC jack, negative center
Battery 9 V type 6LR61
Power consumption 25 mA
Dimensions approx. 5" (127 mm) x 3 9/10" (100 mm)
x 2" (50 mm)
Weight approx. 460 g
BEHRINGER is constantly striving to maintain the highest professional
standards. As a result of these efforts, modifications may be made from
time to time to existing products without prior notice. Specifications and
appearance may differ from those listed or illustrated.
Technical specifications and appearance subject to change without notice.
The information contained herein is correct at the time of printing. The
names of companies, institutions or publications pictured or mentioned
and their respective logos are registered trademarks of their respective
owners. Their use neither constitutes a claim of the trademarks by
BEHRINGER
®
nor affiliation of the trademark owners with BEHRINGER
®
.
Any mention of samples settings by commercial organizations or reference
to commercial organizations is for information only. It does not imply any
affiliation of BEHRINGER with the samples settings mentioned nor does
it imply recommendation or endorsement by BEHRINGER nor does it
imply that the samples settings mentioned are necessarily the best available
for the purpose. BEHRINGER
®
accepts no liability for any loss which may
be suffered by any person who relies either wholly or in part upon any
description, photograph or statement contained herein. Colours and
specification may vary slightly from product. Products are sold through
our authorised dealers only. Distributors and dealers are not agents of
BEHRINGER
®
and have absolutely no authority to bind BEHRINGER
®
by
any express or implied undertaking or representation. No part of this
manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying and recording of any
kind, for any purpose, without the express written permission of
BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER
®
is a registered
trademark.
ALL RIGHTS RESERVED.
© 2004 BEHRINGER Spezielle Studiotechnik GmbH,
Hanns-Martin-Schleyer-Str. 36-38,
47877 Willich-Münchheide II, Germany.
Tel. +49 2154 9206 0, Fax +49 2154 9206 4903

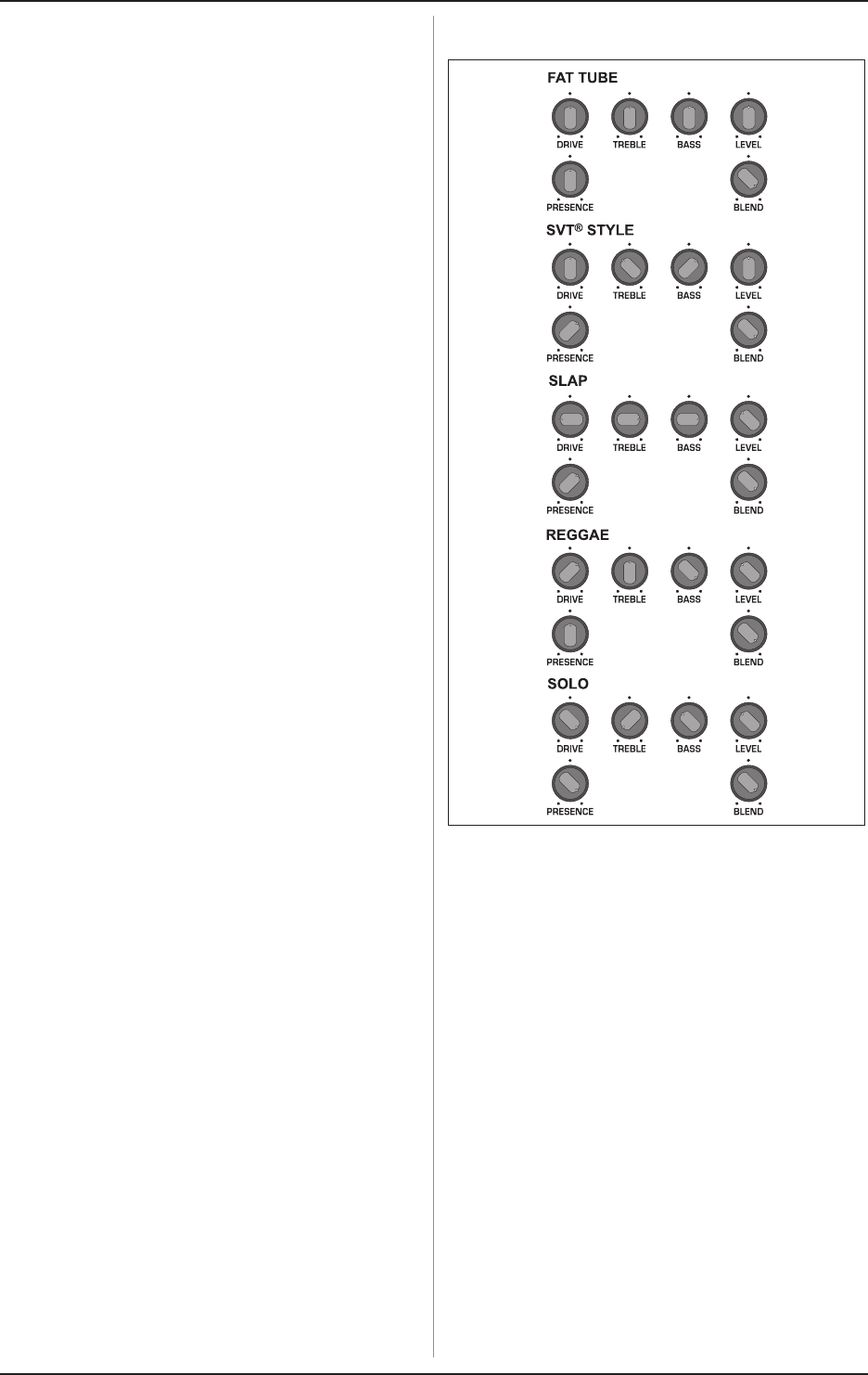

SAMPLE SETTINGS
