ULTRABASS BX4410/BX4410A
7. SPECIFICATIONS
+ Please ensure that only qualified personnel install
and operate the BX4410/BX4410A. During installation
and operation the user must have sufficient
electrical contact to earth. Electrostatic charges
might affect the operation of the unit.
6.2.1 Loudspeaker connections
In total, your BX4410/BX4410A features three loudspeaker
connectors.
+ When connecting loudspeakers to the 1/4" jack
connectors, please switch off the device first.
Power up the unit again after all connections have
been made.
Please use a speaker compatible to Neutrik
®
Speakon
®
if you
want to connect one speaker cabinet only. For optimum output
power delivered to the speaker(s), use your BX4410/BX4410A
in combination with one 4W or two 8 W cabinets.
Your BX4410/BX4410A is equipped with high-quality
connectors compatible to Neutrik
®
Speakon
®
, which ensure safe
and trouble-free operation. These connectors were especially
developed for high-power loudspeakers. Once it is plugged in, it
safely locks into its position and cannot be accidentaly
disengaged. It prevents the occurrence of electrical shock and
ensures the correct polarity.

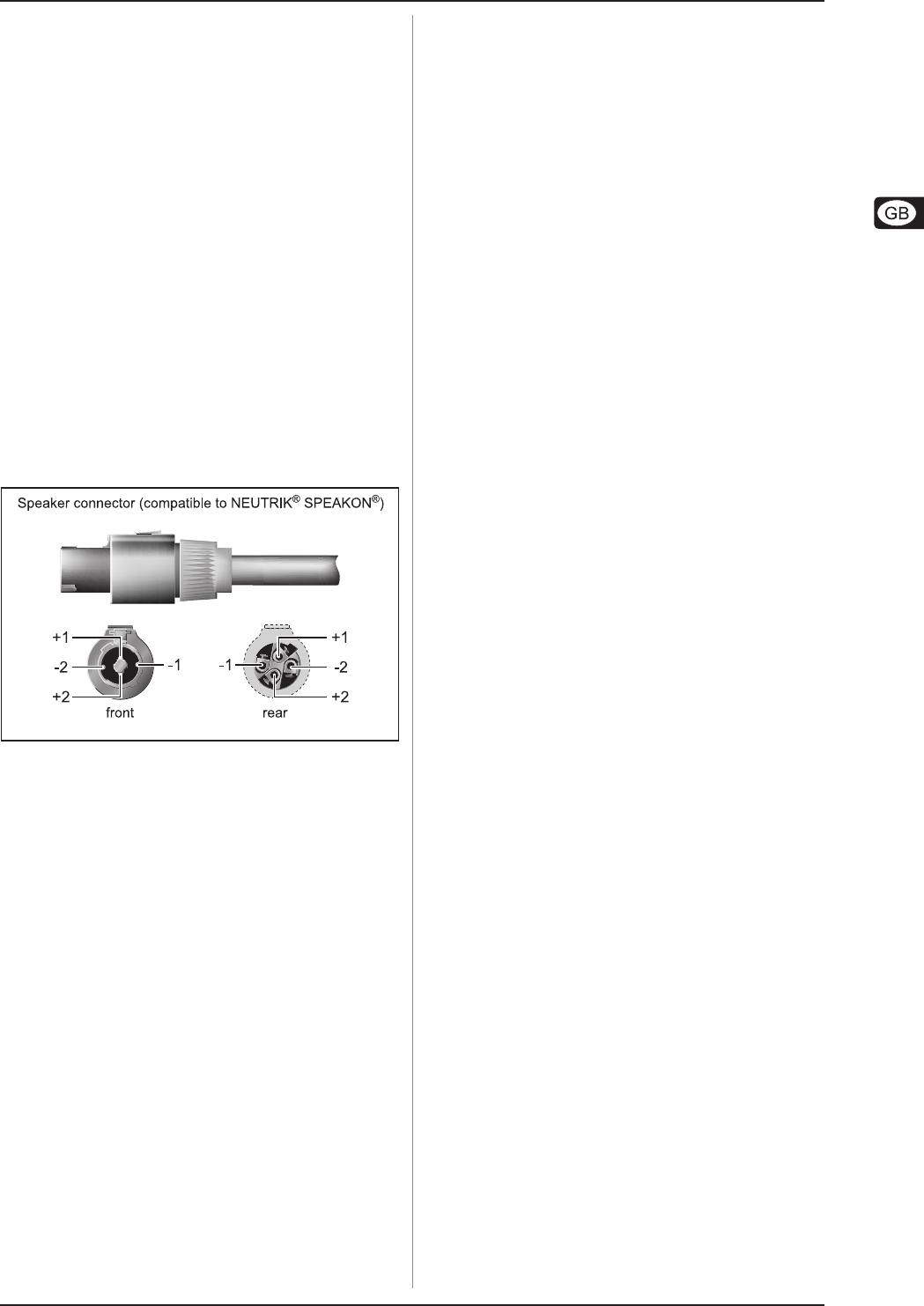

Fig. 6.4: Professional connector compatible to
Neutrik
®
Speakon
®
7. SPECIFICATIONS
AUDIO INPUTS
Active instrument input 1/4" TS connector, unbalanced
Input impedance approx. 220 kW unbalanced
Passive instrument input 1/4" TS connector, unbalanced
Input impedance approx. 730 kW unbalanced
Return 1/4" TS connector, unbalanced
Input impedance approx. 15 kW unbalanced
AUDIO OUTPUTS
Send/Tuner 1/4" TS connector, unbalanced
Output impedance min. 2 kW unbalanced
Line Out 1/4" TS connector, unbalanced
Output impedance approx. 100 W unbalanced
Output level max. +20 dBu
D.I. output XLR connector, servo-balanced
Output impedance approx. 100 W balanced
Output level max. 0 dBu
Loudspeaker connectors 1/4" TS connector, unbalanced
professional connector
(compatible to Neutrik
®
Speakon
®
)
Load impedance min. 4 W
SYSTEM SPECIFICATIONS
Power amp output 450 Watts into 4 W
SPEAKERS
High-power bass speakers 4 x 10" BUGERA
TM
Hard Attack
Aluminum cone speakers
(BX4410A)
4 x 10" BUGERA
TM
Classic Tone
bass speakers (BX4410)
Sensitivity 94 dB @ 1 W / 1 m
SPL max. 119 dB
Impedance 8 W
Frequency response 46 Hz - 16 kHz
Power (program) 300 W
Tweeter 1" tweeter driver
Frequency response 5 kHz - 16 kHz
POWER SUPPLY
Mains voltages U.S./Canada
120 V~, 60 Hz, 6 A
China/Korea
220 V~, 50 Hz, 3 A
Europe/U.K./Australia
230 V~, 50 Hz, 3 A
Japan
100 V~, 50 - 60 Hz, 6 A
General export model
120/230 V~, 50 - 60 Hz
Fuse 100 - 120 V~: T 10 A H 250 V
220 - 240 V~: T 6.3 A H 250 V
Mains connection Standard IEC receptacle
PHYSICAL/WEIGHT
Dimensions (H x W x D) approx. 33" (840 mm)
x 26 3/4" (680 mm)
x 16 1/3" (415 mm)
Weight approx. 60.5 kg (133.4 lbs)
BEHRINGER constantly strives to maintain the highest quality standards. Modifi-
cations may be made, if necessary, without prior notice. The specifications and appearance
of the equipment may therefore differ from those listed or illustrated.
