FOOT CONTROLLER FCV100
6

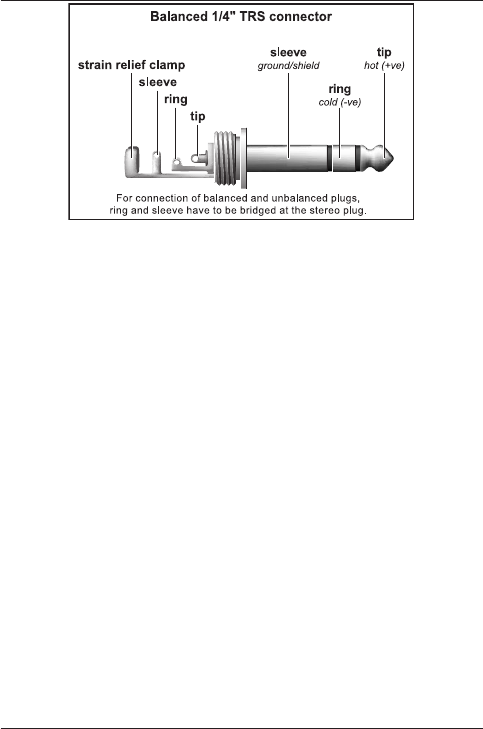

Fig. 4.2: 1/4" TRS connector
5. MULTILINGUAL DOCUMENTATION
The following versions of this manual can be downloaded free of
charge at www.behringer.com: German, French, Spanish, Italian,
Dutch, Finnish, Swedish, Danish, Portuguese, Greek and Japanese.
6. SPECIFICATIONS
Input/output 1/4" TRS connectors
Maximum input level 2 V (RMS)
Input impedance 300 kΩ
Output impedance 560 Ω
Attenuation range 0 - 70 dB
Total harmonic distortion 0.04% (1 kHz @ 1 V (RMS) output)
Signal-to-noise ratio 94 dB
Power supply 12 V / 50 mA DC power adapter
Battery power 9 V battery type 6LR91
Power consumption 5 mA
Dimensions 6" (150 mm) x 5" (130 mm) x 2 3/8" (60 mm)
Weight approx. 650 g (1.43 lbs)
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of
these efforts, modifications may be made to existing products from time to time without prior notice.
Specifications and appearance may therefore differ from those listed or shown.
6. SPECIFICATIONS
