EUROPOWER PMH1000/PMH3000/PMH5000

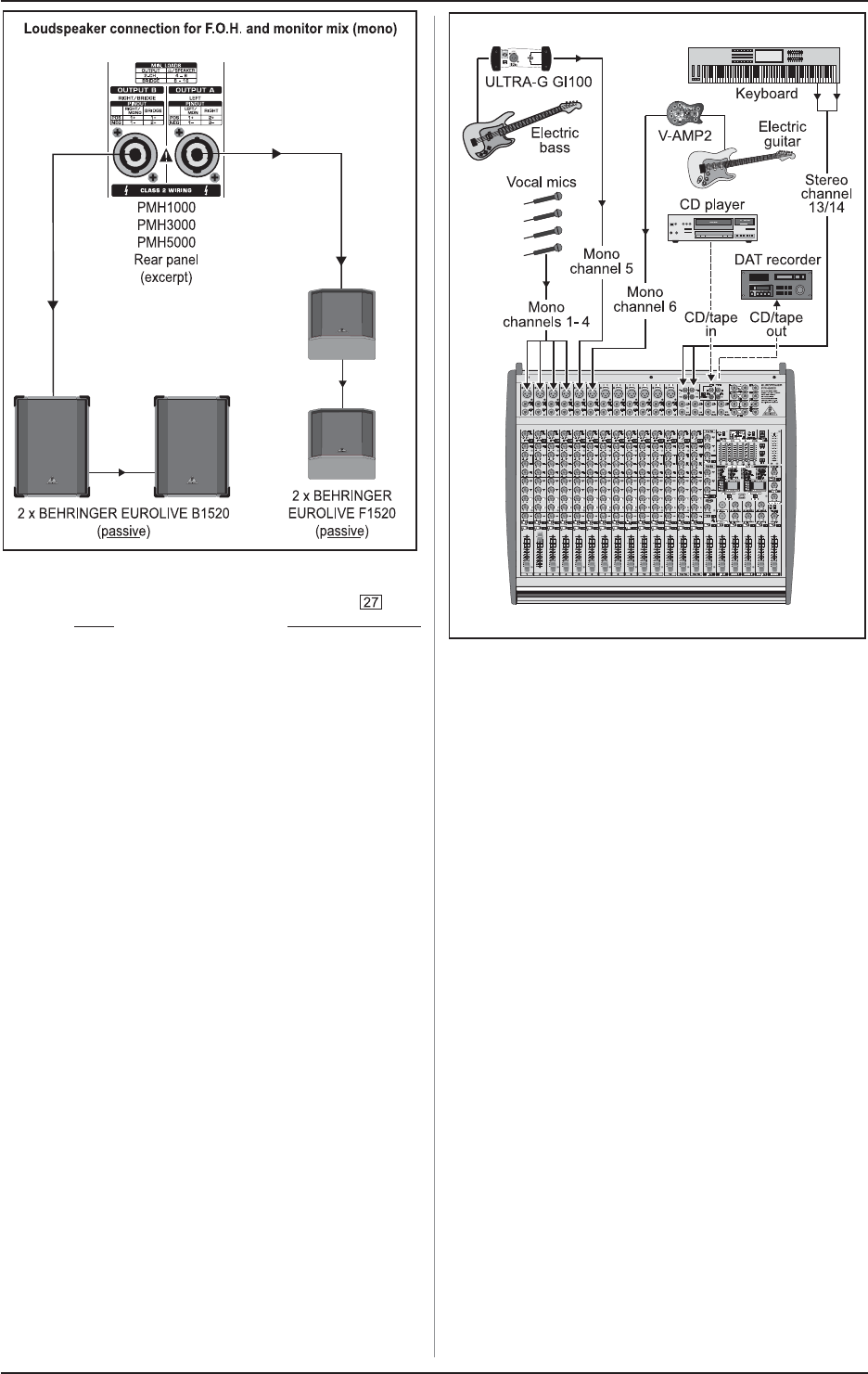

Fig. 5.3: Dual mono operation
For a dual mono operation, the AMP MODE switch must
be set to its center position (MON1/MONO for PMH3000/PMH5000
or MON for PMH1000)! The two loudspeaker outputs provide the
main and the monitor signals, separately from each another.
Each of these signals is then sent to two speakers wired in
parallel.
5. WIRING EXAMPLES
Fig. 5.4: Standard set-up (example)
The illustration shows just one channel configuration possible,
comprising mono and stereo sources and additionally the tape
input/output for recording the mix signal or feeding in a playback
signal.
