POWER
ON
GX-40M
CHORUS
CHORUS
46
010
28
DEPTH
46
010
28
RATE FOOTSWITCH
12 13
46
010
28
REVERB
10 1411 15
17 18
16
right increases the midrange output.
The Mid control allows for 19dB of
boost or cut at 900Hz.
9: HIGH: Adjust the high frequency
output level with this control: in the
center position the high frequency
output will be “flat” (no boost or cut).
Turning the control to the left reduces
the high frequency output; turning it to
the right increases the high frequency
output. The High control allows a total
range of 23dB of boost or cut at 5kHz.

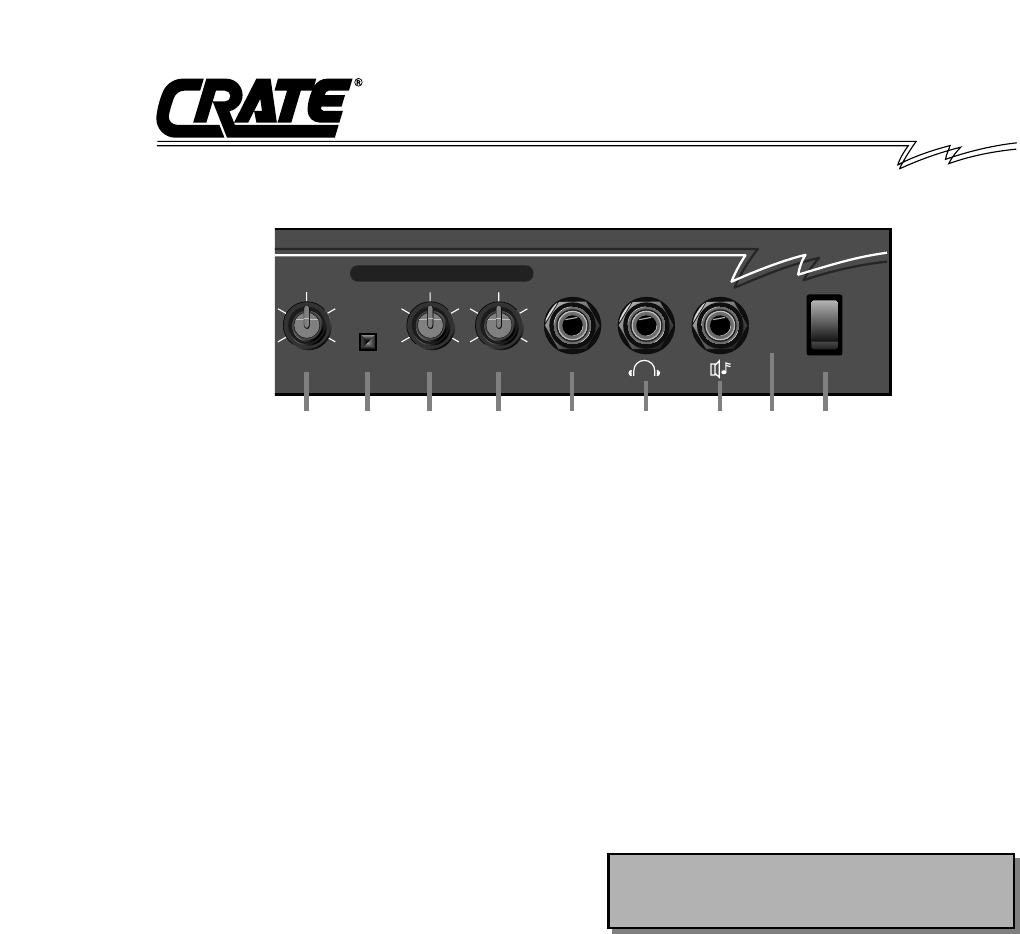

10: REVERB: Adjust the amount of
Reverb effect with this control: in its
full-left position the signal will be “dry”
(without any reverb). As you turn the
control to the right the amount of
reverberation increases.
11: CHORUS ON: To activate the
Chorus effect, press this switch in.
(This switch is disabled when a
footswitch is plugged in – see #14)
12: DEPTH: Adjust the overall
amount of chorus with this control: to
the left for slow, smooth “phasing”
sounds, to the right for faster “vibrato”
sounds.
13: RATE: Adjust the speed of the
chorus effect with this control: to the
left for a little effect, to the right for a
lot.
14: FOOTSWITCH: Plug a dual
footswitch (such as the Crate CFP-2)
here to control channel selection and
chorus on/off. (Tip = channels, ring =
chorus, sleeve = ground.)
15: HEADPHONES: For private prac-
tice sessions, plug a pair of stereo
headphones into this jack. The inter-
nal speaker is disconnected whenev-
er headphones are being used.
16: EXTERNAL SPEAKER: You may
connect the GX-40M to an external
speaker with a rated impedance of at
least 4 ohms using this jack. The
internal speaker is disconnected
whenever an external speaker is
used.
17: ON LED: The word “ON” will glow
when you turn on the GX-40M, show-
ing you that the amplifier is activated
and ready to play.
18: POWER: This heavy-duty rocker-
type switch is used to turn the amplifi-
er ON in the up position, off in the
down position. The ON LED (#17)
works with this switch as a visual indi-
cator.
19: POWER CORD: (Rear panel, not
shown: This heavy-duty, grounded,
three-wire power cord is to be
plugged into ONLY a safely-wired,
grounded 120 volt, 60 cycle AC power
outlet. DO NOT attempt to defeat the
ground connection of this cable!
WARNING: DO NOT attempt to use head-
phones in the Speaker jack! Permanent
hearing damage could result!
GX-40M Amplifier
