the CUE BUTTONS (28, 35, 42) for CH 1 through CH 3 to
assign the CH(s) to be monitored in your headphones. The
respective CUE LED indicators will glow when in use.
Use the face panel located rotary CUE VOLUME CONTROL
(44) to adjust the CUE volume without changing the overall mix.
By turning the face panel located CUE/MIX/PGM ROTARY
CONTROL (45) counter clockwise you will be able to monitor
the assigned cue signal. Slowly turning the control clockwise to
middle position allows you to monitor CUE MIX with PGM.
Moving the control clockwise to the right allows you to monitor
PGM output.
Use the CUE SPLIT/MIX SWITCH (48) to split the audio input
playing in your head phones. When the CUE SPLIT/MIX
SWITCH (48) is in MIX mode you will only be able to monitor
your CUE. When the CUE SPLIT/MIX SWITCH (48) is in SPLIT
mode, you will notice one side of your headphones will play your
cue and the other side will play PGM, thus enabling you to mon-
itor both outputs separately. This feature will only work properly
if the CUE/MIX/PGM (45) rotary control is placed at noon or mid-
dle position. If the CUE/MIX/PGM (45) rotary control is set to
CUE you will only here the CUE signal playing on the left side of
your headphones. If the CUE/MIX/PGM (45) rotary control is set
to PGM, the PGM will be the only signal heard from the right
side of your headphones.
6. CROSS FADER SECTION: The CROSS FADER (46) allows
you to mix from one source to another. The CROSS FADER (46)
in your unit is removable and if the need arises can be easily
replaced. Your Gemini mixer comes with an RG-45 (RAIL-
GLIDE™) DUAL-RAIL CROSS FADER. RAIL GLIDE™
CROSS FADERS have internal dual stainless steel rails that
allow the slider to ride smoothly and accurately from end to end.
Also available is our RG-45 PRO (PROGLIDE™) DUAL-RAIL
CROSS FADER. This unique CROSS FADER features, a spe-
cial curve designed for scratch mixing. Just purchase one from
your Gemini dealer and follow the instructions:
NOTE: DO NOT APPLY PRESSURE WHILE USING THE CROSS FADER (46).
LIGHTLY GLIDE THE CROSSFADER BACK AND FORTH. PRESSING DOWN
ON THE CONTROLS CAN BEND CONTACTS AND CAUSE A LOSS OF
SOUND.
7. OUTPUT SELECTION CONTROL: Once you are comfort-
able with the sound level of your music you may adjust the vol-
ume with the MASTER (47) slide control. You may adjust the
volume of the zone output with the ZONE (51) rotary control. You
may also pan the audio output from left to right with the
BALANCE (52) rotary control.
8. MIC SECTION: Plug your main MIC into the MIC 1/4" input
(21) located on the front panel.
9. VU METER: The PS-01 has a dual mode VU METER (50)
that allows you to monitor the decibel levels of CUE and PGM or
LEFT and RIGHT stereo levels of the MASTER output. With the
VU MODE SWITCH (49) you may monitor the output level of the
CUE and PGM when the switch is UP. When this mode is
engaged the CUE will be located on the left of the VU METER,
while the PGM will be located on the RIGHT. Or you can moni-
tor the LEFT and RIGHT stereo decibel levels of the MASTER
OUTPUT when the switch is in the DOWN position.
INPUTS:
Phono..................................................................3 mV, 47 KOhm
Line.................................................................150 mV, 27 KOhm
MIC…………..........……….................1.5 mV, 1 KOhm Balanced
OUTPUTS:
Amp/Zone........................................................0 dB 1V, 400 Ohm
Max.................................................................20V Peak-to-Peak
Rec....................................................................225 mV, 5 KOhm
Balanced Master……………...............................….2V, 400 Ohm
GENERAL:
Frequency Response................................20Hz - 20KHz +/- 2 dB
Distortion.........................................................................< 0.02%
S/N Ratio.........................................................Better Than 80 dB
Headphone Impedance...................................................16 Ohm
Power Source.....................................115/230 V, 60/50 Hz, 20 W
Unit Dimensions..............................................10" x 3.3" x 11.9"
…………………………………………….....(254 x 84 x 303 mm)
Weight...............................................................6.93 lbs (3.15 kg)
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTIFICATION FOR
IMPROVEMENT.
PPSS-0011
PPSS-0011
SPECIFICATIONS:

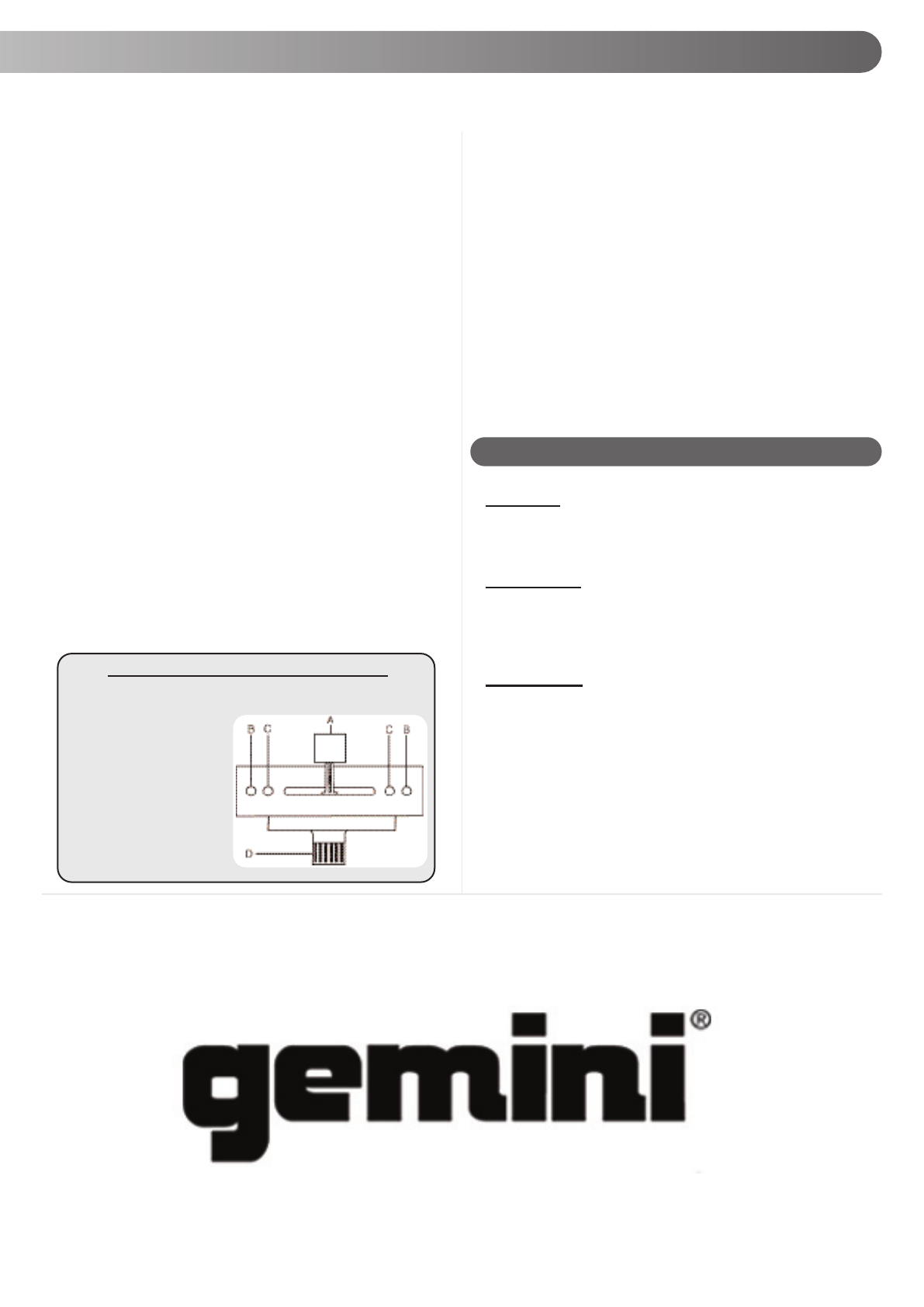

REPLACEABLE CROSS FADER
1. UNSCREW THE OUTSIDE FACE PLATE SCREWS ON THE LOWER HALF OF
THE MIXER. REMOVE THE FADER CAPS AND FACE PLATE.
2.UNSCREW THE FADER (B)
SCREWS. DO NOT TOUCH INSIDE
SCREWS (C). CAREFULLY
REMOVE OLD CROSS FADER AND
UNPLUG CABLE (D).
3. PLUG IN THE NEW CROSS
FADER INTO CABLE (D) AND
PLACE BACK INTO MIXER.
4. SCREW THE CROSS FADER TO
MIXER WITH THE FADER PLATE
SCREWS (B).
5. REPLACE THE LOWER HALF
FACE PLATE AND SCREW TO THE
MIXER.
