Overview
1•5

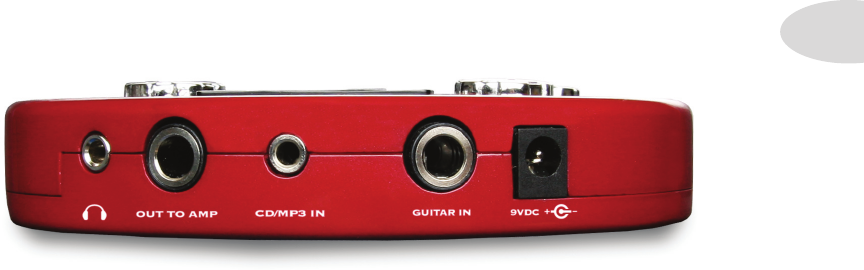

Inputs & Outputs
As illustrated in the Pilot’s Handbook, the Pocket POD Express has 2 Inputs and 2 Outputs,
plus of course the power jack for plugging in the optional DC-1 Power Supply.
Inadditiontoyour1/4-inchguitarinput,youhaveaCD/MP31/8-inchinput.Thisenables
youtoplaybackaCD,forexample,andjamalongwithitonyourguitar.TheCD/MP3
will play ‘straight thru’, meaning it will not be processed by the Amp Models or FX.
Your outputs include a 1/4-inch mono output to your guitar amplifier, and a 1/8-inch
stereo headphone output for headphone jamming. Both outputs are controlled by the
POD’s Volume knob. Headphones are recommended for full stereo sound, but the Pocket
POD Express sounds great feeding the input of a guitar amplifier as well.
You can also use the headphones output to send your Pocket POD Express stereo audio to
a computer or dedicated recording device for recording.
