To install the SCSI cable cage
1 Turn off the system and all the peripherals connected to it.
2 Unplug all cables from the power outlets.
3 Place the system unit on a flat, stable surface.
4 Remove the front bezel, inner front panel, side panel, and air
baffle.

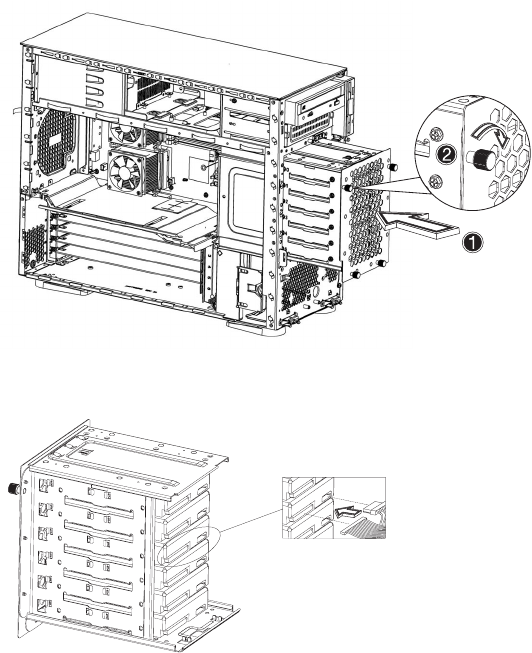

5 Insert the HDD cable cage into the housing (1), then tighten the
four thumbscrews to secure it to the chassis (2).
6 Connect the SCSI cable and the SCSI HDD power cable to the hard
disk drive.
7 Reinstall the air baffle and the chassis panels.
