Take Apart Inverter Board - 25

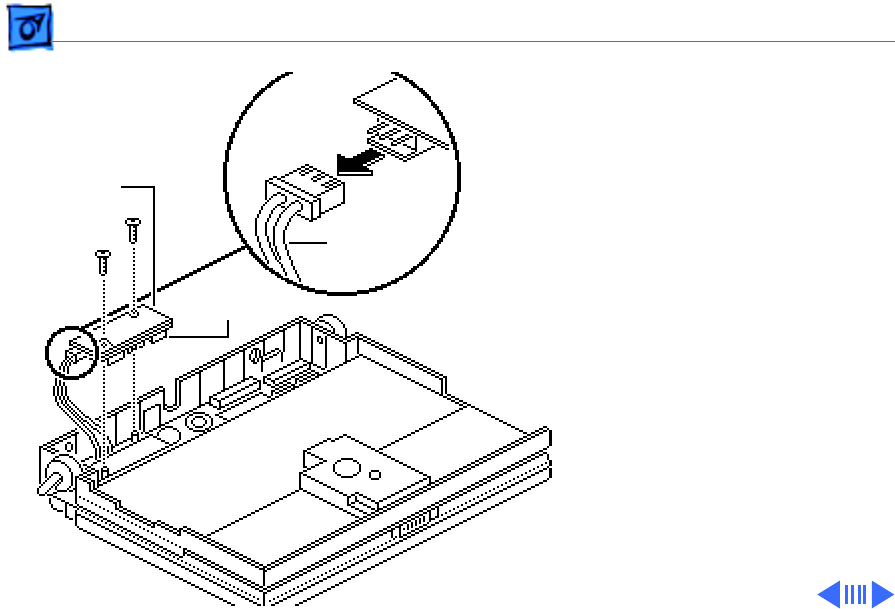

1 Remove the two
mounting screws that
secure the inverter
board to the bottom case.
2
Note:
Do not remove the
inverter shield from the
inverter board.
Pull the inverter board
and attached shield
straight up and off the
connector on the
interconnect board.
3 Disconnect the inverter
cable.
Replacement Note:
Inverter
shields are available from
Inverter
Cable
Inverter
Shield
Inverter
Board
