NOTE:
Door Track Splice (painted part)
Step 4
B17
● Parts Needed For ●
Door Track Assembly
●●
●●
● 6617 Door Track Splice (1)
●●
●●
● 9378 Door Track (2)

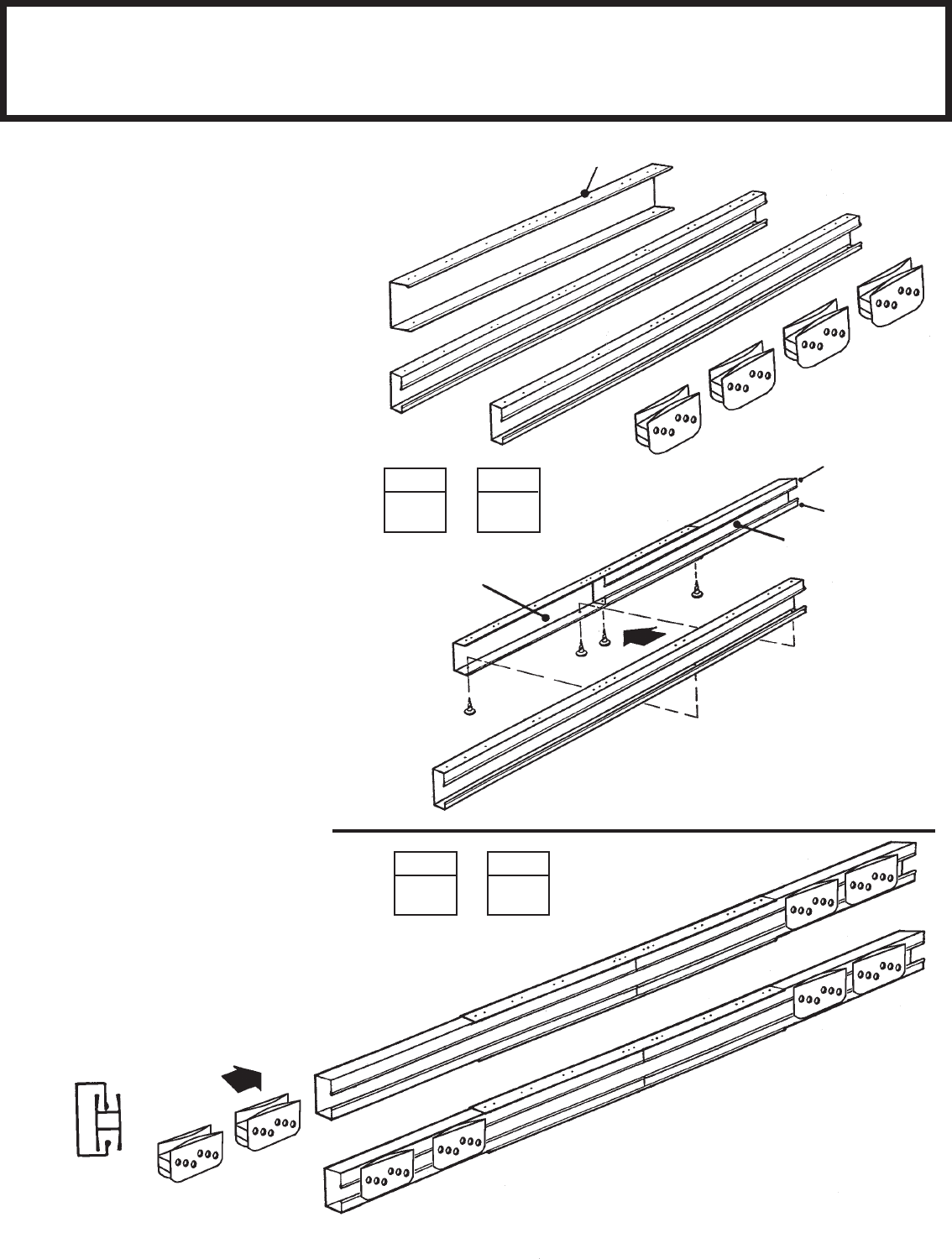

The door track assembly supports
the sliding doors and reinforces the
front wall. It is made up of three pieces.
1 Using the door track splice,
(painted), join the door track
(galvanized) pieces end-to-end as
shown.
2 Insert four screws
from the under-
side only.
Hint: The holes in the top side of the
door track assembly are for fastening
the gable to the top of the front wall in
a later step.
3 Position door slides onto the
legs, from the end of door track
assembly, as shown in the end view.
4 Set this piece aside for later use.
66769
STEP
3
94 5/8" 2,40m
STEP
4
END VIEW
STEP
1
9378
STEP
2
94 5/8"
2,40m
6617
9378
Long Leg
on Top
Short Leg
on Bottom
9378
9378
6617
66769
94 5/8"
2,40m
