CS1782 User Manual
6

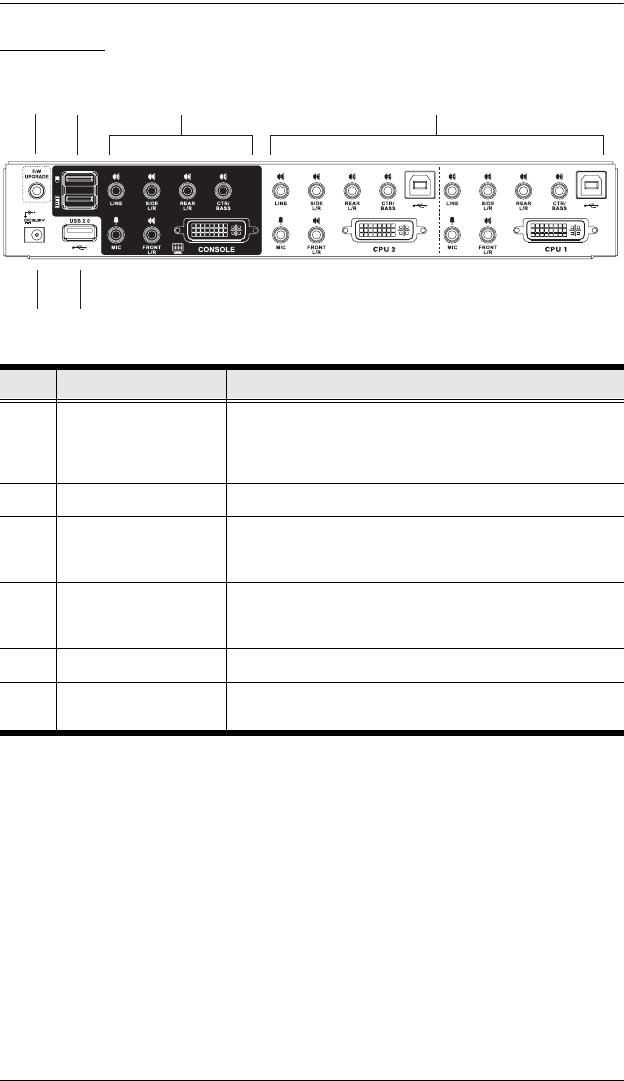

Rear View
No. Component Description
1 Firmware Upgrade Port The Firmware Upgrade Cable that transfers the firmware
upgrade data from the administrator’s computer to the
CS1782 plugs into this connector. See page 23 for firmware
upgrading details.
2 USB Console Ports Your USB keyboard and USB mouse plug in here.
3 Console Port Section The cables from your monitor, microphone, and speakers
plug in here. Each connector is marked with an appropriate
icon to indicate itself.
4 CPU Port Section The cables that link the switch to your computers plug in
here. Each CPU port is comprised of a microphone jack,
speaker jacks, USB type B socket and a DVI connector
5 Power Jack The power adapter cable plugs into this jack.
6 USB 2.0 Peripheral
Port
USB 2.0 peripherals (printers, scanners, etc.) can plug into
this port.
1
2
3
4
5
6
