- 9 -

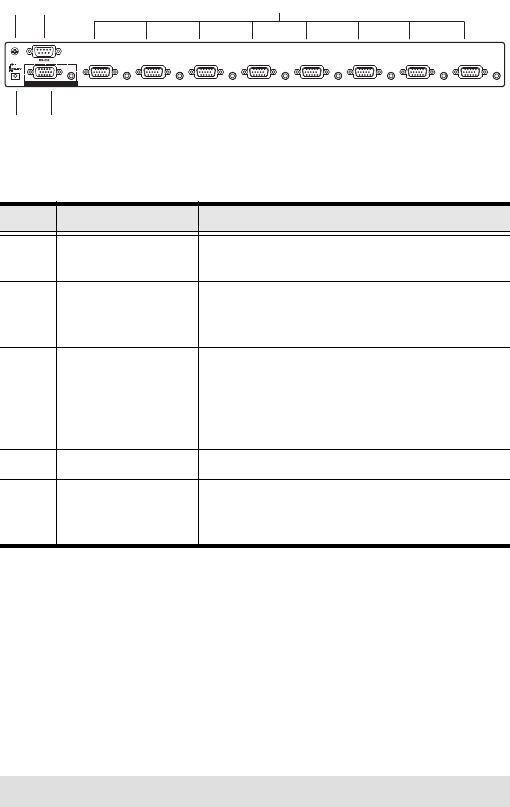

VS0801 Rear View
No. Component Function
1 Grounding
Terminal
The grounding wire (used to ground the
unit) attaches here.
2 RS-232 Serial
Port
This is the serial remote port for input
source selection and high-end system
control.
3 Video / Audio
Input
Each input section is comprised of a VGA
connector and a mini stereo audio jack.
The cables that connect to the video and
audio output ports on the computers /
source devices plug in here.
4 Power Jack The power adapter cable plugs in here.
5 Video / Audio
Output
The cables that connect to the video and
audio input ports on the video display plug
in here.
1
2
3
VIDEO / AUDIO OUT
8765
4321
4
5
