Setting Mode Switches
ESX-1320/ESX-1380 Installation Guide 3-5
3. Use a Phillips screwdriver to remove the screws attaching the cover to
the ESX chassis. (See Figure 3-3.)

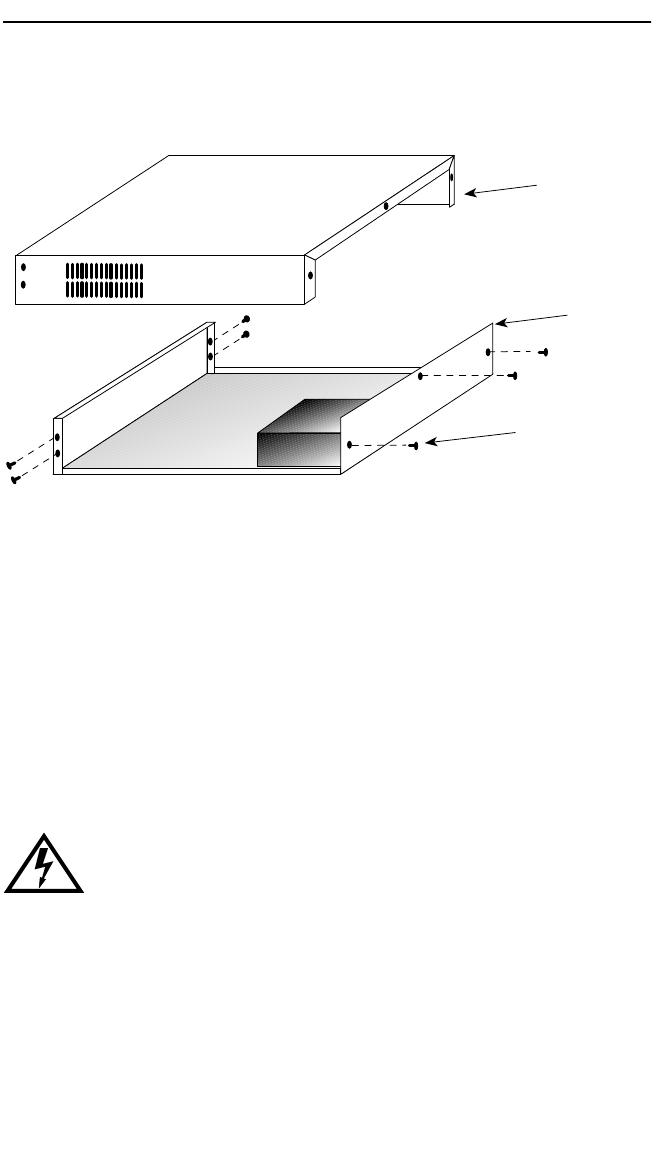

Figure 3-3 Removing the Chassis Cover
4. Remove the cover by sliding it backwards and lifting it up from the
chassis.
To reinstall the chassis cover, perform the removal procedures in reverse
order.
3.3 SETTING MODE SWITCHES
Figure 3-4 shows the location and positions of the mode switches. These
switches are shipped in the positions shown and need not be checked
before operating the ESX.
Never adjust switch settings while the ESX has power applied
to it. Not only is this dangerous, but the change in position
activates the switch function only after reinstalling or cycling
power to the ESX.
Chassis Cover
Chassis
Cover Screw
1574-07
