4. OPERATING INSTRUCTIONS
Footswitch operation

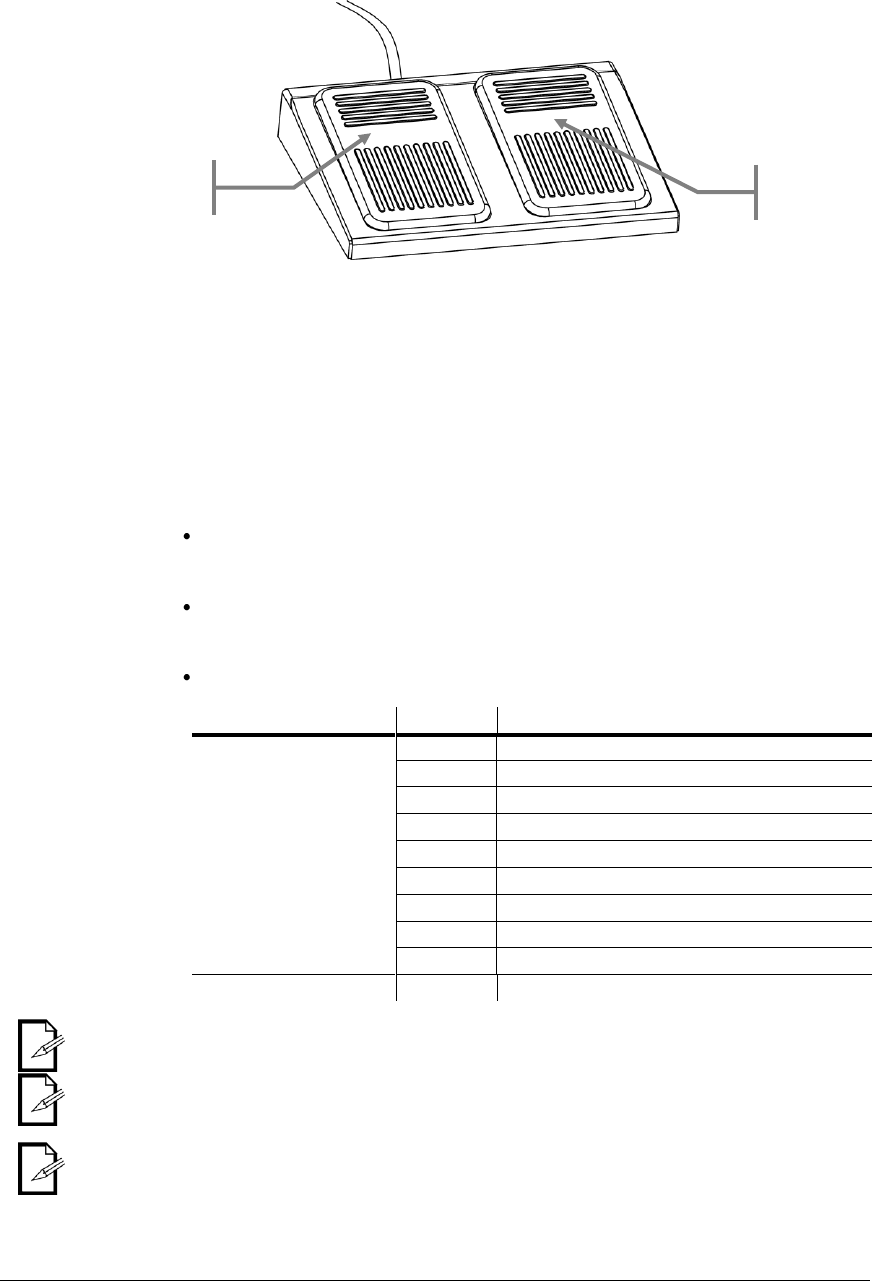

The included footswitch provides quick access to preset colors, color change programs, and sound
triggering via the onboard microphone on the Mini 4BAR™. Please see the chart, along with the set of
instructions, below for further explanation.
1. Power on the fixture.
2. Connect the footswitch to the Mini 4BAR™ via the 3-pin connection cable with plug.
Auto
Press pedal #1 to scroll through the auto programs and the static colors.
Blackout
Press pedal #2 to activate the Blackout function.
Sound
Press pedals #1 & #2 simultaneously to activate sound operation.
Auto program-color change
The fixture will start up in sound mode when first powered ON.
The fixture will cycle through the auto programs and static colors very rapidly if pedal #1 is held down.
This will seem like a very fast auto program. When releasing the pedal, the fixture will stop on the
program in the cycle.
After activating Blackout, pedal #2 will NOT release the blackout. Press pedal #1 to activate Auto mode,
or press pedals #1 & 2 simultaneously to activate Sound mode.
Pedal #1
(Auto Program Selection)
