3.2.5.9 Paper Feed Roller Assembly Removal
1. Remove the printer mechanism (see Section 3.2.4).
2. Remove the carriage unit (see Section 3.2.5.2).
3. Remove the pump unit (see Section 3.2.5.3).
4. Remove the tension spring holding the tension roller assembly to the sub frame.
5. Remove the tension wire on the left side frame holding the tension roller assembly to the left
side frame.
6.
Remove a CBB (M3×8) screw securing the tension roller assembly to the sub frame and remove
the tension roller assembly.
7. Release the 2 bushings securing the paper feed roller assembly to both the left side frame and
the sub frame. Then remove the paper feed roller assembly.
CBB (M3x8)
Tension
Wire
Tension Roller
Assembly
Eject Paper
Roller
Tension
Wire

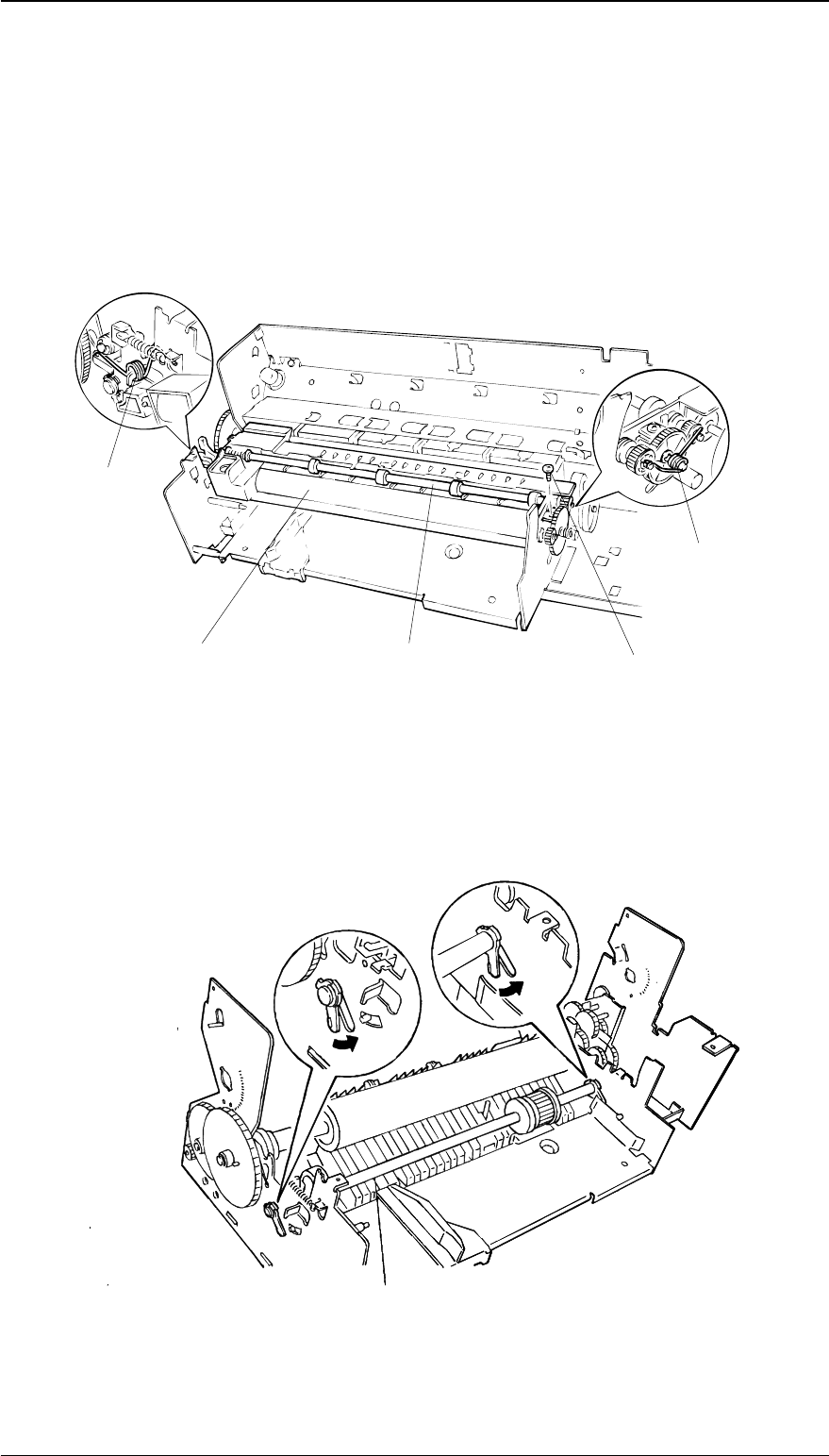

Figure 3-19. Tension Roller Assembly Removal
Paper Feed Roller
Figure 3-20. Paper Feed Roller Assembly Removal
