Stylus Photo R300/R310 Revision A
DISASSEMBLY AND ASSEMBLY Disassembly 76
External View

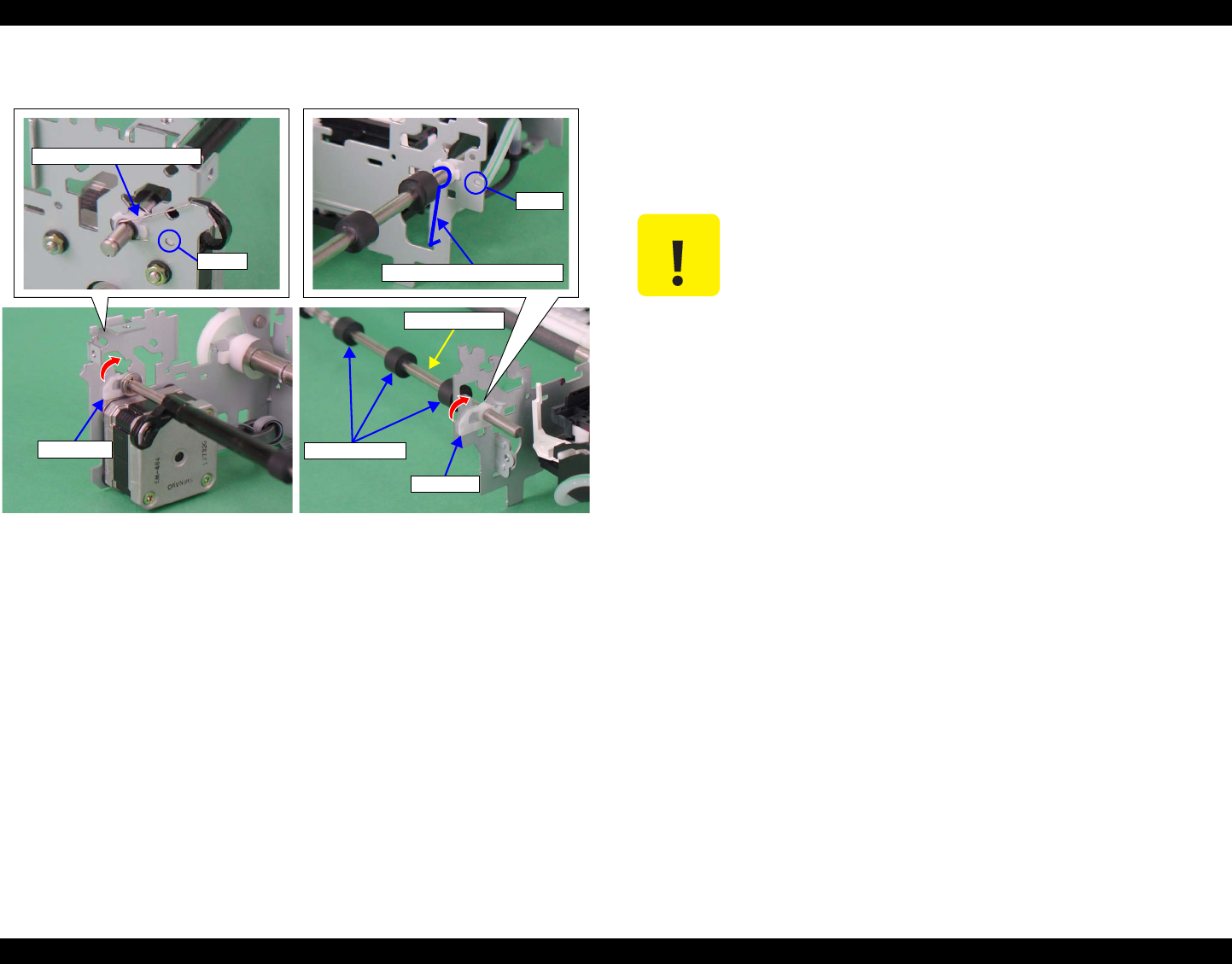

Figure 2-56. Removing "Paper Guide, Front"/"Roller EJ Assy." (3)
13. Remove "Grounding Spring, EJ Left (Right)" from "Roller EJ Assy.".
14. Release the dowels of both left and right "Bushing, 5" which secure "Roller
EJ Assy.", then turn them in the direction of the arrow.
15. Pull out the right "Bushing, 5" rightward, and pull out the left edge of "Roller
EJ Assy." from "Frame, Main" through its left side.
Bushing, 5
Bushing, 5
Roller EJ Assy.
Rubber Rollers
Grounding Spring, EJ Left
Dowel
Dowel
Grounding Spring, EJ Right
C A U T I O N
When removing "Roller EJ Assy.", do not damage the rubber
rollers.
