Configuration Pages
The Configuration pages allow system settings (such as IP address, date/time),
scaler settings (input, output, and advanced configurations ), and passwords
(admin and user), to be configured as desired. Also, by selecting the Firmware
Upgrade link, the device firmware can be upgraded.
System Settings page
The USP 507 displays the System Settings page (figure 6-3) when you click the
Configuration tab. The screen consists of fields in which you can view and edit
IP administration and system date and time settings. See appendix B for basic
information about IP addresses and subnetting.

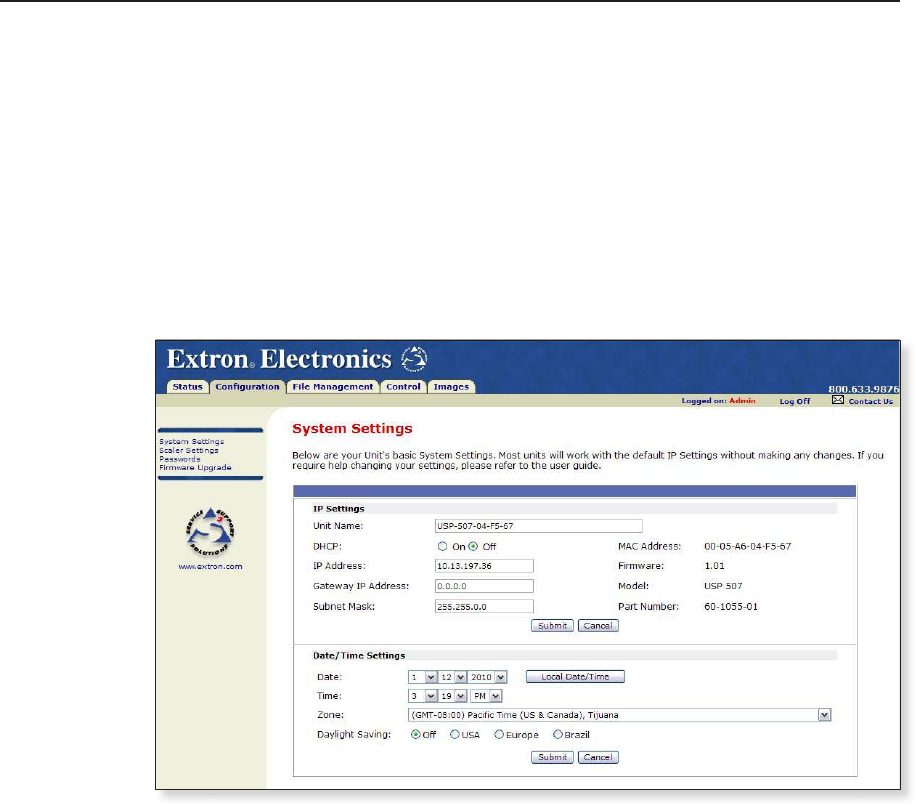

Figure 6–3 — System Configuration page
On password-protected connections, there are two levels of protection:
administrator and user. Administrators have full access to all unit capabilities
and editing functions. Users can change inputs, create and recall presets, change
images, and view all settings with the exception of passwords.
• Ethernet connection to the unit, either entering SIS commands (see chapter 4,
“SIS Programmer’s Guide”) or using the Extron Signal Processing Products
Control Program
(see chapter 5, “USP 507 Software”) is password protected.
• Connection via the RS-232/RS-422 port is not password protected.
IP Settings fields
The IP Settings fields provide a location for viewing and editing settings unique to
the Ethernet interface. After editing any of the settings on this page, click Submit at
the bottom of the IP Settings section.
Unit Name field
The Unit Name field contains the name used as the “from” information when the
USP 507 e-mails notification of its failed or repaired status. This name field can be
changed to any valid name, up to 24 alphanumeric characters.
N
The following characters are invalid in the device name:
+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.
