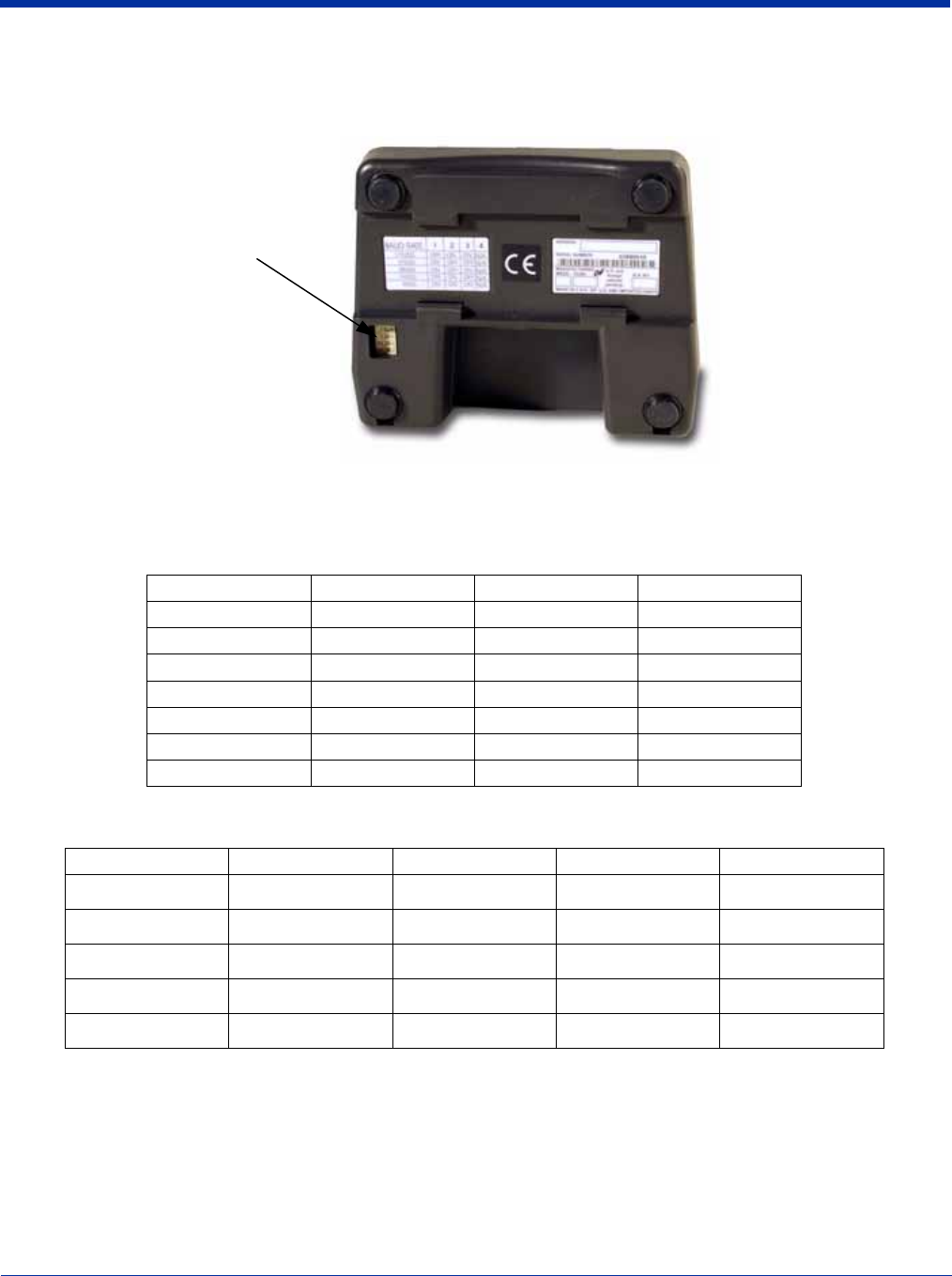

Bottom View of HomeBase/IntelliBase/IntelliBase+
HomeBase Switch Settings
IntelliBase/IntelliBase+ Switch Settings
Powering the Dolphin Terminal
Dolphin charging/communication cradles provide power to the intelligent battery charging system incorporated into Dolphin
terminals. This charging method protects the battery from being damaged by overcharging. Therefore, Dolphin terminals may
be stored indefinitely in the charging/communication cradles without damage to the terminals, battery packs, or peripherals.
To charge a Dolphin terminal, follow these steps:
Baud Rate Switch 1 Switch 2 Switch 3
115200 OFF OFF OFF
57600 ON OFF OFF
38400 OFF OFF ON
19200 OFF ON OFF
9600 ON ON OFF
4800 ON OFF ON
2400 OFF ON ON
Baud Rate Switch 1 Switch 2 Switch 3 Switch 4
115200
OFF ON ON N/A
57600
ON OFF OFF N/A
38400
ON OFF ON N/A
19200
ON ON OFF N/A
9600
ON ON ON N/A
Baud Rate
Switch
