HP 2500C Electronics
Motor Control Overview
There are four main motors in the HP 2500C printer : the Carriage Motor, the IDS Motor,
the Line Feed motor and the Dual Bin motor. Additionally, there are two Service Station

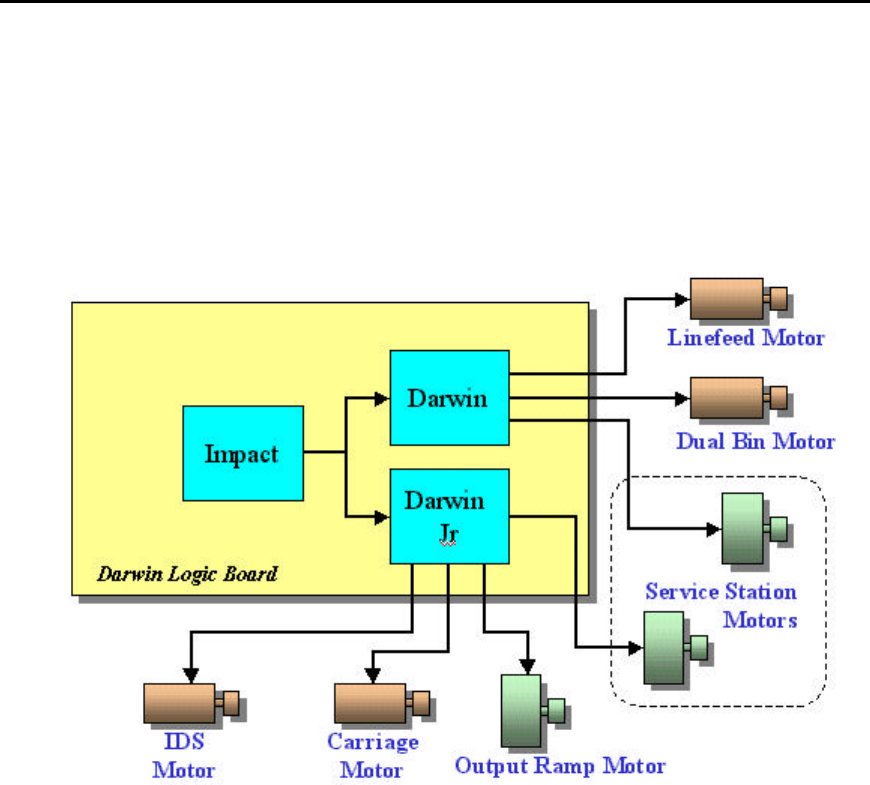

Motors and one Output Ramp Motor. The following diagram shows the control hierarchy
of the motors in the HP 2500C:
