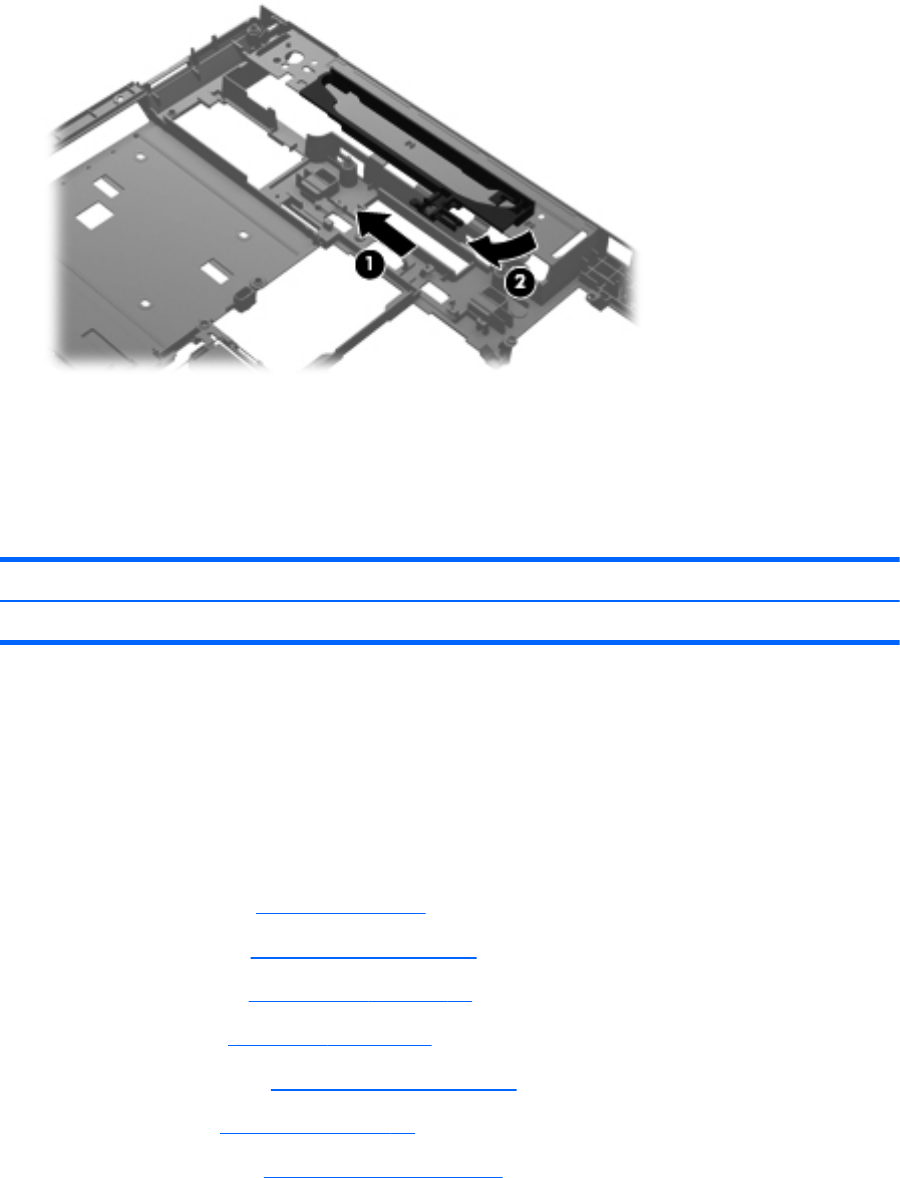

Swing the right end of the battery release latch arm (2) clockwise until the left end of the arm
release from the openings in the base enclosure.
10. Remove the battery release latch arm.
Reverse this procedure to install the battery release latch assembly.
Function board
Description Spare part number
Function board 658142-001
Before removing the function board, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 68), and then remove the following components:
a.
Service cover (see
Service cover on page 70)
b. Optical drive (see
Optical drive on page 71)
c. Hard drive (see
Hard drive on page 74)
d. Modem module (see
Modem module on page 85)
e. Keyboard (see
Keyboard on page 88)
f. Base enclosure (see
Base enclosure on page 93)
