Repair Information 4-31
4069-XXX
Fuser Cover
1. Remove the fuser assembly.
2. Note the thermistor cable routing and disconnect the cable from
the fuser board.

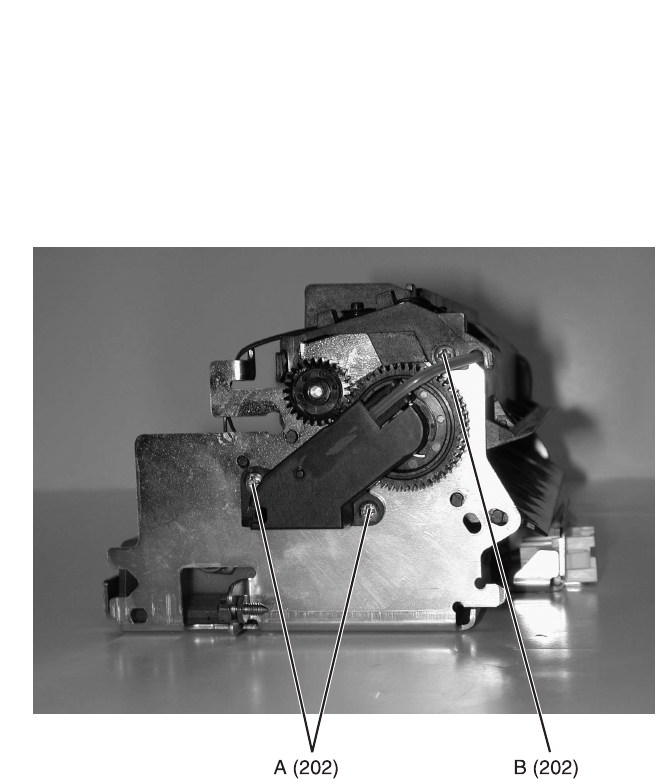

3. Remove the left and right lamp bracket mounting screws (A).
4. Remove the left and right fuser cover mounting screws (B) and
lift the cover from the fuser assembly.
Fuser Detack Fingers
1. Remove the fuser assembly.
2. Remove the fuser cover assembly.
3. Remove the fuser detack housing assembly.
4. Gently pry the detack finger and spring from the housing
assembly.
