12
Initial start-up - Your spa has been designed so
that by simply connecting power to the spa, the
spa will automatically heat the water to the factory
set temperature of 100°F unless you set the spa to
a different temperature. If power is disconnected
from the spa, it will automatically revert back to the
factory set Temperature of 100°F when power is
reapplied.
TEMPERATURE ADJUSTMENT (80°F-104°F)
The current temperature is constantly displayed on the LED. Press the “Up” or “Down” buttons
to display the set temperature. Each time either button is pressed again, the set temperature will
increase or decrease depending on which button is pressed. After three seconds, the LED will
automatically display the current spa temperature.
JETS OPERATION
Press the Jets button once to turn on the pump. Both the pump and the ozone generator operate
simultaneously. Press the Jets button again to turn off the pump. The pump turns off after 15
minutes unless heating is required to achieve the set temperature. When heating, the pump is
automatically activated and cannot be turned off with the function button.
LED MULTI COLOR LIGHT
Press the Light button once to turn on the light. Press the button again to turn the light off. Every
time the light is quickly turned off and back on, a new color will illuminate. There are 6 different
colors followed by a color wheel. The color wheel starts out as a white light. Exiting the color
wheel may require you to press the light button quickly 4 times or more.
NOTE: The blue color is the first of the 6 colors followed by the color wheel. If left on, the light will
automatically turn off after 4 hours of operation.
STANDBY MODE (LS100DX - LS450DX)
The spa can be disabled when the filter needs to be replaced. To put the system in standby mode,
press the up or down button, then the light button, the display will show “Sb.” All spa functions are
disabled except for freeze control. Pressing any panel button will resume spa operation.
NOTE: DO NOT use "STANDBY MODE" when draining the spa! See "Draining your Spa"
instructions.
OPERATIONAL MODE (LS600DX)
The Standard Mode is the default operational mode preset from the factory. In order to program
the spa to operate in the other 2 modes allowing you to change the mode, dip switch #7 on the
control box board must be moved downward into the "off" position (See page 10).
CHANGING THE MODE (SEE THE FOLLOWING PAGE):
If your spa has been modified to allow mode change, press the Up or Down button, then while the
display is flashing press the light button to go into Standard, Economy or Sleep Mode.

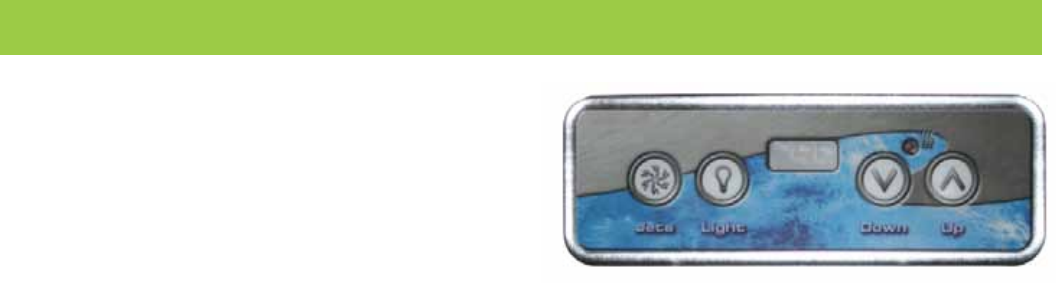

CONTROL PANEL OPERATION
