PROPELLER INSTALLATION INSTRUCTIONS
Page 6 / 7 90-830296005 FEBRUARY 2010
7. Secure it with the aft propeller nut and tighten to the specified torque.

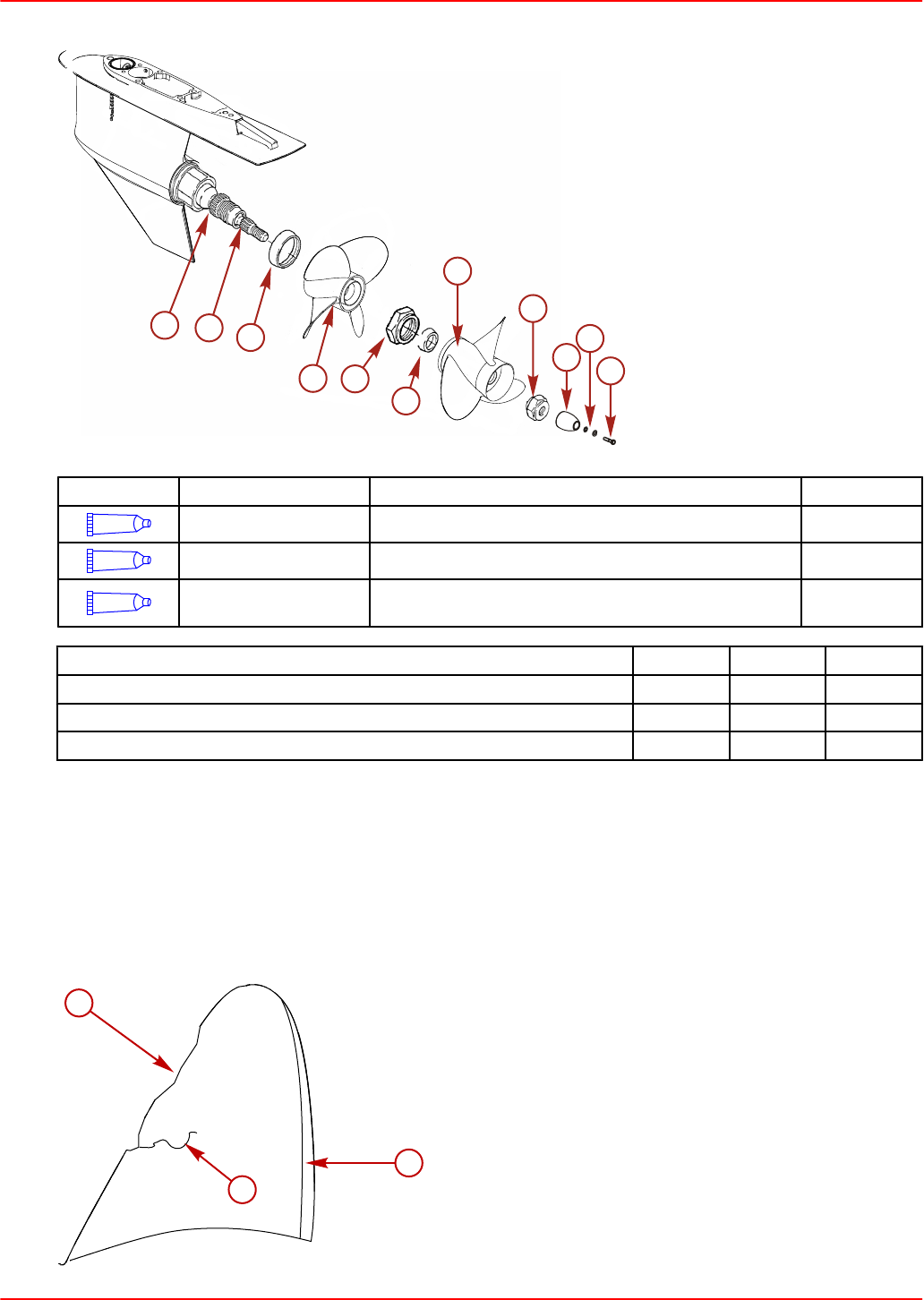

a - Outer propeller shaft
b - Inner propeller shaft
c - Forward thrust hub
d - Forward propeller
e - Forward propeller nut
f - Aft thrust hub
g - Aft propeller
h - Aft propeller nut
i - Anode
j - Washers
k - Screw
Tube Ref No. Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft splines 92-802865Q02
94
Anti-Corrosion Grease Propeller shaft splines 92-802867Q 1
95
2-4-C Marine Lubricant
with Teflon
Propeller shaft splines 92-802859A 1
Description Nm lb‑in. lb‑ft
Forward propeller nut 136 100
Aft propeller nut 81 60
Anode screw 27 20
IMPORTANT: Check the tightness of both propellers after 20 hours of operation. Tighten the propeller nuts if necessary.
Do not operate the vessel with a loose propeller.
Propeller Inspection and Maintenance
• Inspect the leading edge of the propeller frequently for nicks, gouges, and damage.
• Propellers with large, deep dents, gouges, or torn metal should be replaced or repaired.
• Mineral deposits on stainless steel propellers can be caused by an inoperative or missing MerCathode system.
NOTE: Mineral deposits can be removed with household cleaners such as vinegar or other cleaners that remove lime and
mineral deposits.
a -
Leading edge
b - Fatigue crack
c - Cup
