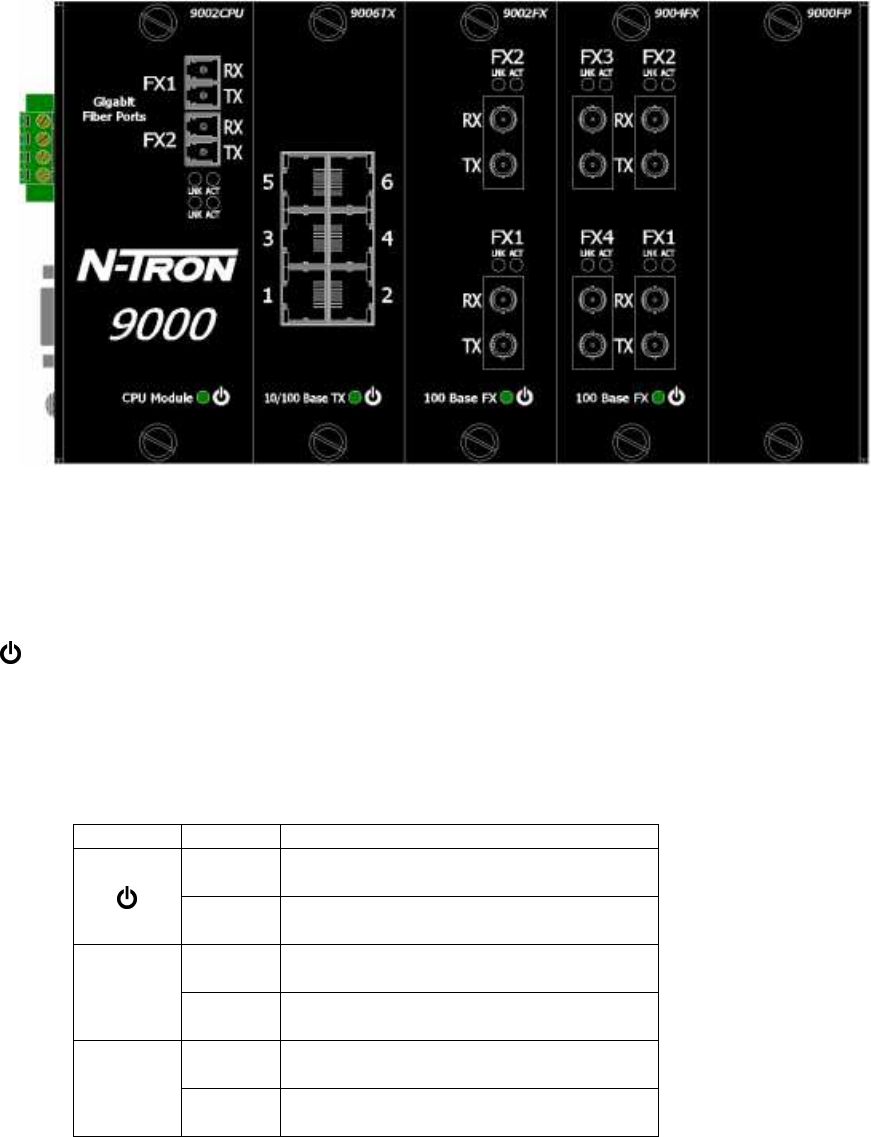

FRONT PANEL
From Top to Bottom:
Gigabit Ports 1000 Base-SX Connections
Fiber Ports 100 Base-FX Connections
RJ45 Ports Auto sensing 10/100 Base-TX Connections
Green LED lights when Power is supplied to the module
NOTE: The RJ45 data port has two LED’s located at the side of the connector. The bottom LED indicates
LINK status, and the top LED indicates ACTIVITY.
LED’s: The table below describes the operating modes:
LED Color Description
GREEN Power is Applied
OFF Power is OFF
GREEN 10/100/1000Mb Link between ports
LNK
OFF No Link between ports
GREEN Data is active between ports
ACT
OFF Data is inactive between ports
