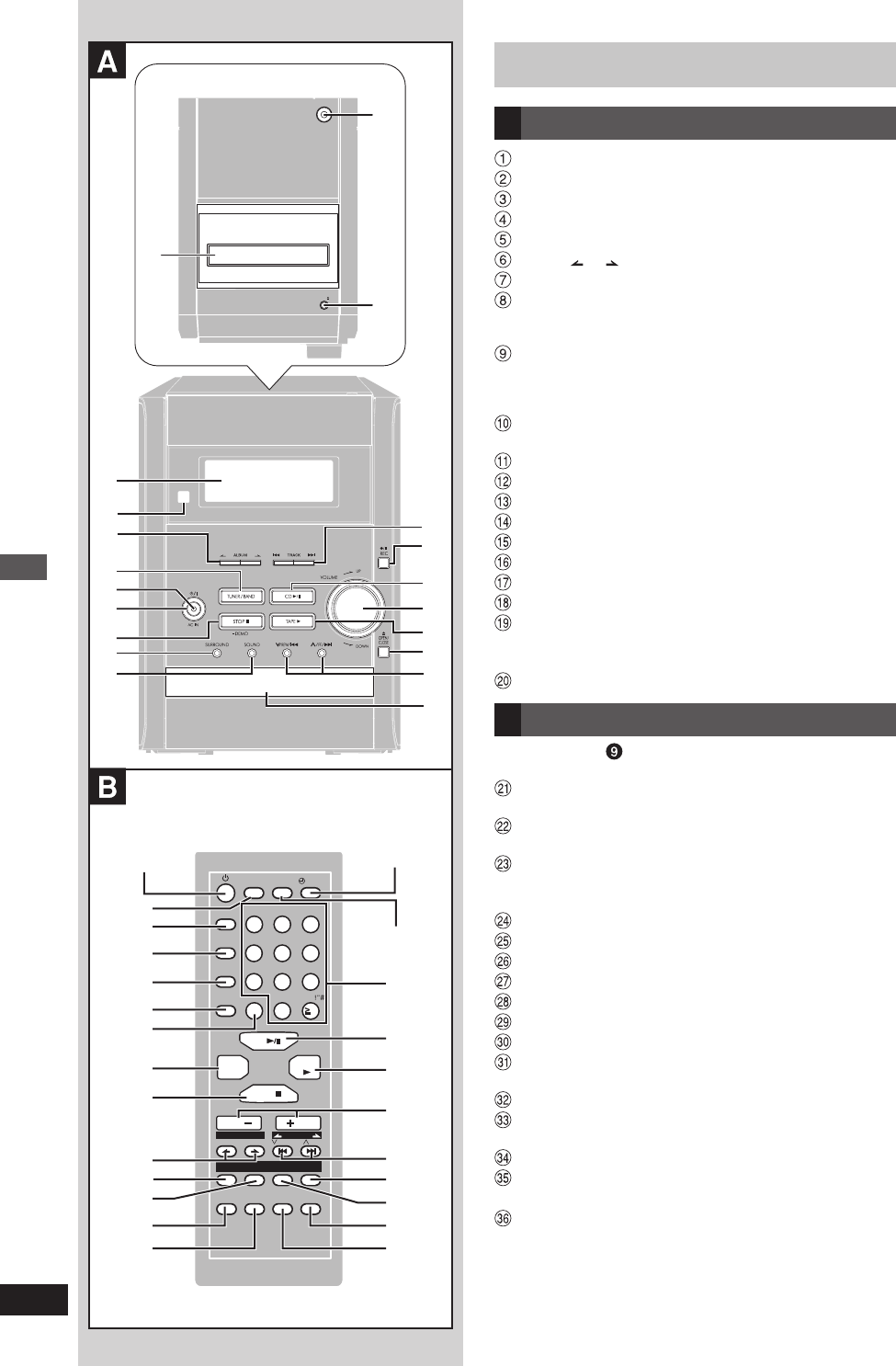

Front panel controls
A Main unit
Headphone jack (PHONES).................................... 19
Cassette lid
Cassette deck open button (OPEN 0) .................. 16
Display
Remote control signal sensor
Album or .......................................................... 13
Tuner/band select button (TUNER/BAND) .............. 8
AC supply indicator (AC IN)
This indicator lights when the unit is connected to the AC
mains supply.
Standby/on switch (y¥I)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
Stop, demonstration button
(STOP 7, –DEMO) ..................................................... 7
Surround button (SURROUND) ............................. 19
Sound button (SOUND) .......................................... 19
Track 4 or ¢ ..................................................... 13
Recording start/pause button (¶/8 REC) ............. 18
CD play/pause button (CD 3/8) ............................ 10
Volume control (VOLUME DOWN, UP).................... 8
Cassette play button (TAPE 3) ............................. 16
CD tray open/close button (0 OPEN/CLOSE) ...... 10
CD skip/search, tape fast-forward/rewind, tune/preset
channel select, time adjust buttons
(4/REW/4, 3/FF/¢) ............................................. 7
CD tray
B Remote Control
Buttons such as function in exactly same way as the but-
tons on the main unit.
Sleep timer, auto off button
(SLEEP, –AUTO OFF).............................................. 21
CD program/clear, tuner preset button
(PROGRAM, –CLEAR) .............................................. 9
Play mode select button
(PLAY MODE) ............................................................ 8
Use this for selecting CD play mode, tune mode, FM mode.
Repeat button (REPEAT) .........................................11
Display button (DISPLAY) ........................................ 8
Delete button (DEL) ................................................ 12
Stop button (STOP 7)..............................................11
Intro button (INTRO) ............................................... 14
Marker memory/recall button (MARKER) ............. 15
Muting button (MUTING) .......................................... 7
Play timer/recording timer button
(˚PLAY/REC) .......................................................... 20
Clock/timer button (CLOCK/TIMER)........................ 7
Numeric, character buttons
(
h
10, 1-9, 0, A-Z, SPACE!”#) ..................................... 9
Enter button (ENTER)............................................. 14
Title search select button
(TITLE SEARCH) ..................................................... 14
Dimmer button (DIMMER) ........................................ 7
