3. Terminal Setup

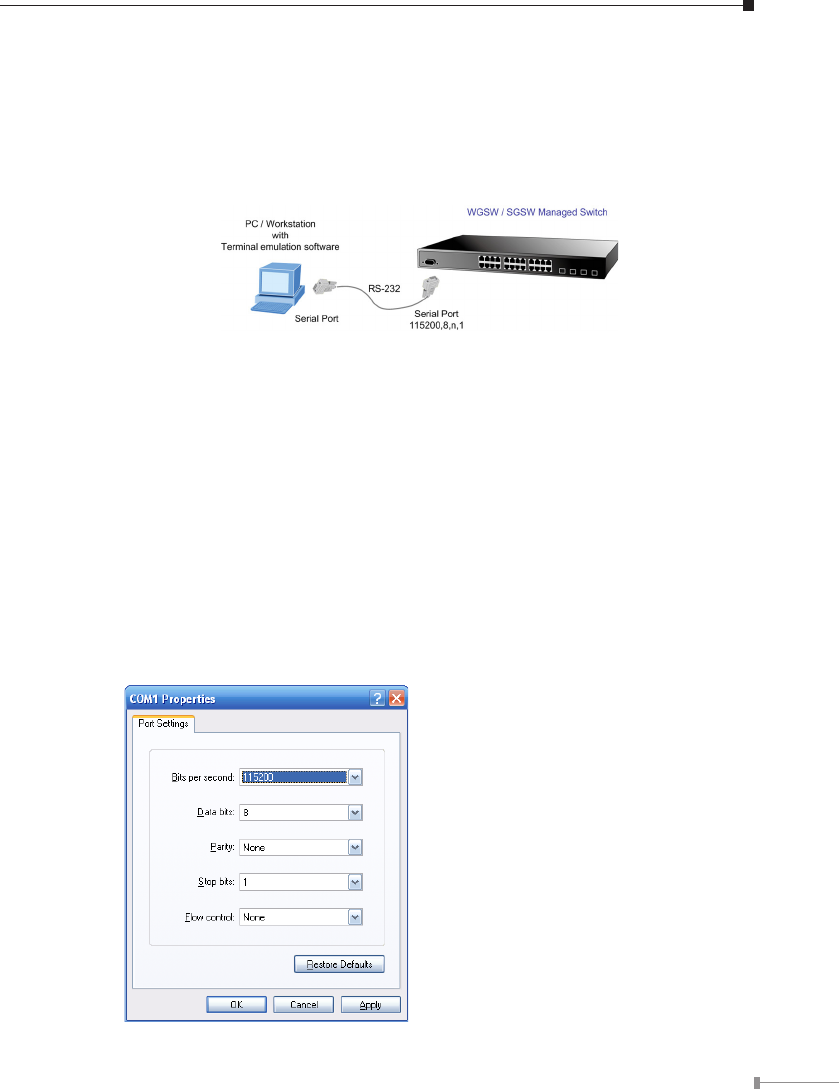

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the WGSW / SGSW Managed

Switch. The consoleportofthe ManagedSwitchisDCE already,sothatyou can

connecttheconsoleportdirectlythroughPCwithouttheneedofNullModem.

Aterminalprogramisrequiredtomake the software connectionto the WGSW /

SGSWManagedSwitch.Windows’HyperTerminalprogrammaybeagoodchoice.

TheHyperTerminalcanbeaccessedfromtheStartmenu.

1. Click

START,thenPrograms,AccessoriesandthenHyper Terminal.

2.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:115200

Parity:None

Databits:8

Stopbits:1

FlowControl:None
