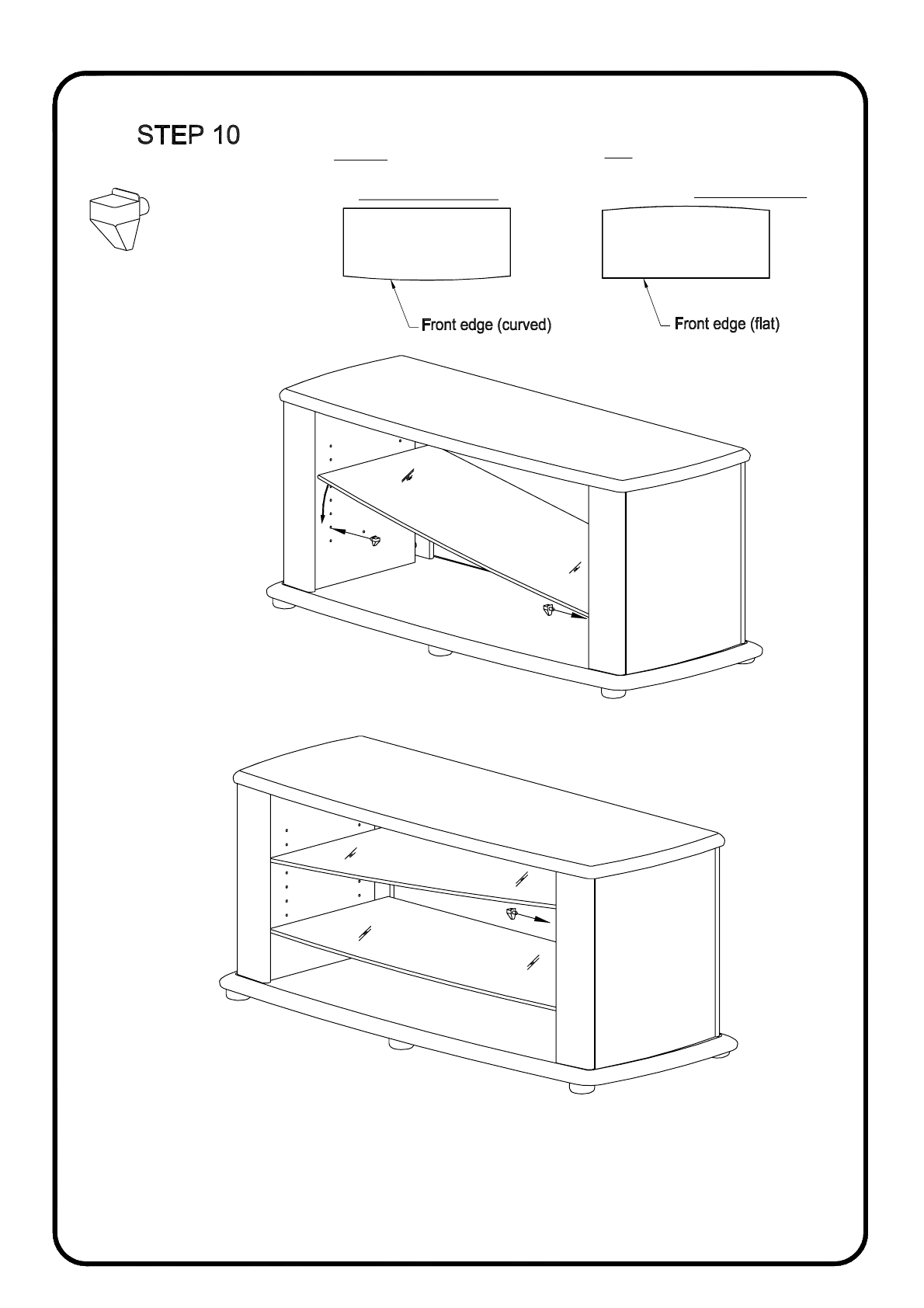

Shelf Pin x8

1. Insert Shelf Pins into holes at the lower p ositions of both the Sides (as illustrated above).

2. T ilt and slide G lass Shelf between Rails (ensuring froste d side down) and place on top of Shelf Pins.

3. Insert Shelf Pins into holes at the upper positions of one Side only.

4. Tilt and slide the second Glass Shelf between Side Rails. While holding one end of the shelf on pins

on one side insert re maining S helf Pins into other side beneath Glass, then lower the shelf on top of the pins.

Curved edge of the glass

shelves must be placed at front

for

curved front design.

Glass shelf

Flat edge of the glass

shelves must be placed at

front for the

flat front design.
