Page 6
Empty the dust cup
regularly to maintain
t h e e f f i c i e n t
performance of the
cleaner.
The maximum dirt
level is marked on the
Dust Cup.
You must empty the Dust Cup before the dirt reaches the
MAX mark. Failure to do this will impair the efficiency of the
cleaner.

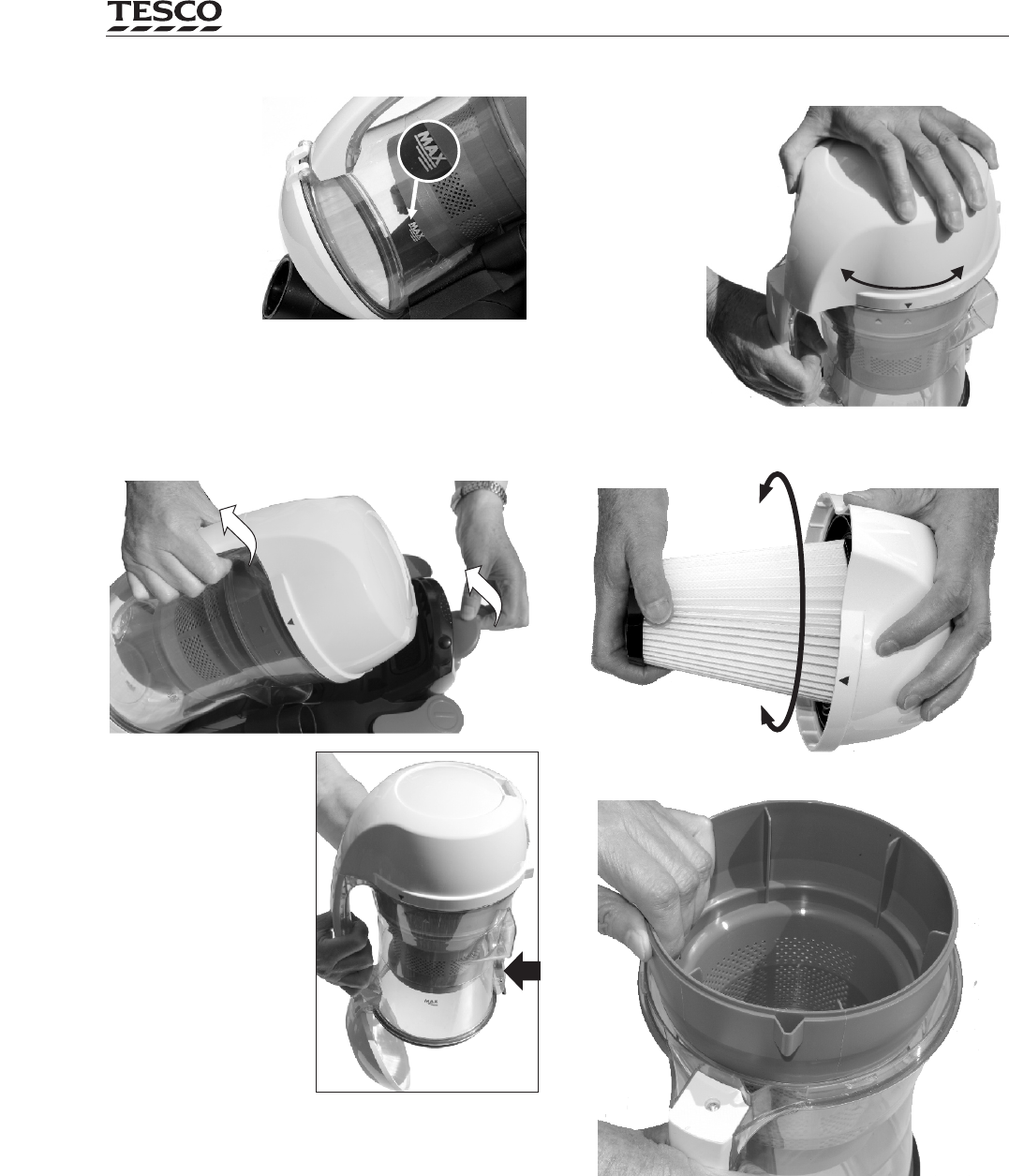

Switch the cleaner off and unplug it.
Lift up the dust cup release lever and then carefully remove the
dust cup from the cleaner.
Invert the dust cup over a bin.
Press the catch on the lid
which will pop open.
Shake and tap the dust cup
lightly to remove as much
dust as possible.
Close the lid.
If you are still vacuuming,
replace the cup.
Cleaning the Dust Cup Filters
The HEPA Filter stops nearly all dust particles and airborne
allergens from re-entering the air you breathe. Around the flter
there is a debris screen.
The HEPA Filter stops nearly all dust particles and airborne
allergens from re-entering the air you breathe.
Clean this filter and screen every time you use the cleaner.
Failure to do this will impair performance and may
damage the cleaner motor.
Remove the lid of the dust cup.
Hold the dust cup firmly
and rotate the lid as shown
to open.
The arrow marks will guide
you.
Hold the dust cup lid. Rotate the filter assembly to unlock it. Lift
the filter assembly out.
Tap the filter on the edge of a bin to shake off any excess dust.
Wash the debris screen under running water to free all
particles.
Brush out the HEPA filter with a soft brush. If the filter is soiled,
wash it under running water until it is thoroughly clean.
Allow both parts of the filter to dry and then reassemble the
filter and re insert it into the Dust Cup.
NEVER replace a filter if it is damp.
VC1811 Vacuum Cleaner User Guide
Emptying the Dust Cup and Cleaning the Dust Cup Filters
LOCK
UNLOCK
UNLOCK
LOCK
