1. PRODUCT OVERVIEW ENGLISH VERSION EO1-33058
1.5 Appearance
E1- 3

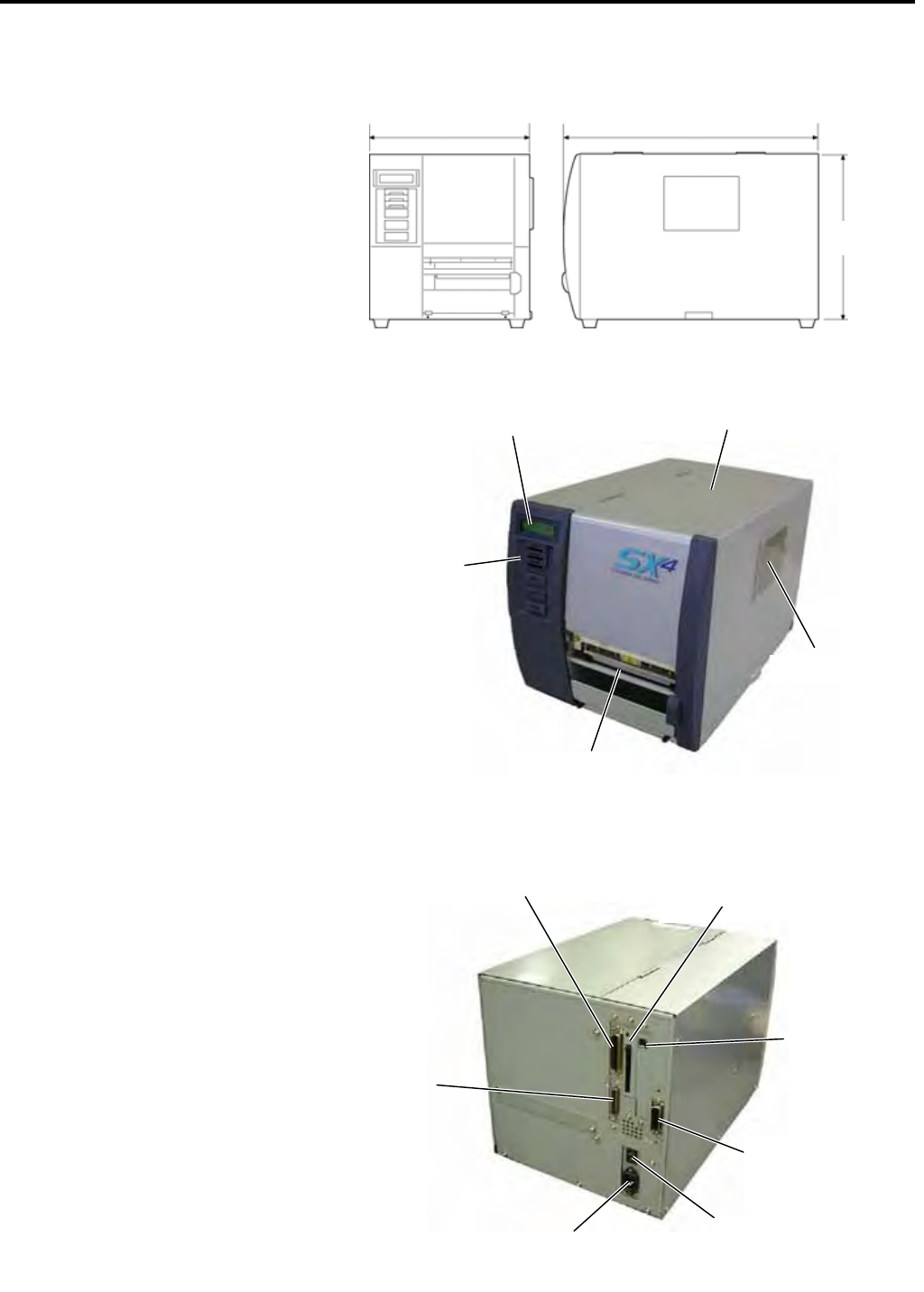

1.5 Appearance
1.5.1 Dimensions
1.5.2 Front View
1.5.3 Rear View
The names of the parts or units introduced in this section are used in the
following chapters.
Dimensions in mm (inches)
LCD Message Display
Operation Panel
Power Switch
{: OFF
|: ON
Media Outlet
Top Cover
Expansion I/O
Interface Connector
(Option)
Serial Interface
Connector (RS-232C)
Parallel Interface
Connector (Centronics)
Supply Window
PCMCIA Card Slot (Option),
USB Connector (Option), or
LAN Connector (Option)
AC Power Inlet
308
(12.1)
291 (11.5)
460 (18.1)
USB Connector
(Option), Wireless
LAN Board
(Option), or LAN
Connector (Option)
