4.15 Fingerprint sensor board 4 Replacement Procedures
4 Replacement Procedures
4.15 Fingerprint sensor board
Removing the Fingerprint sensor board
The following describes the procedure for removing the fingerprint sensor board. (See Figure
4-26 and 4-27.)
1. Push the hook down and remove the fingerprint sensor board hold plate while
sliding it in the direction of the arrow in the figure below.
2. Peel off the glass tape.
Fingerprint sensor board hold plate
Glass tape
Hook

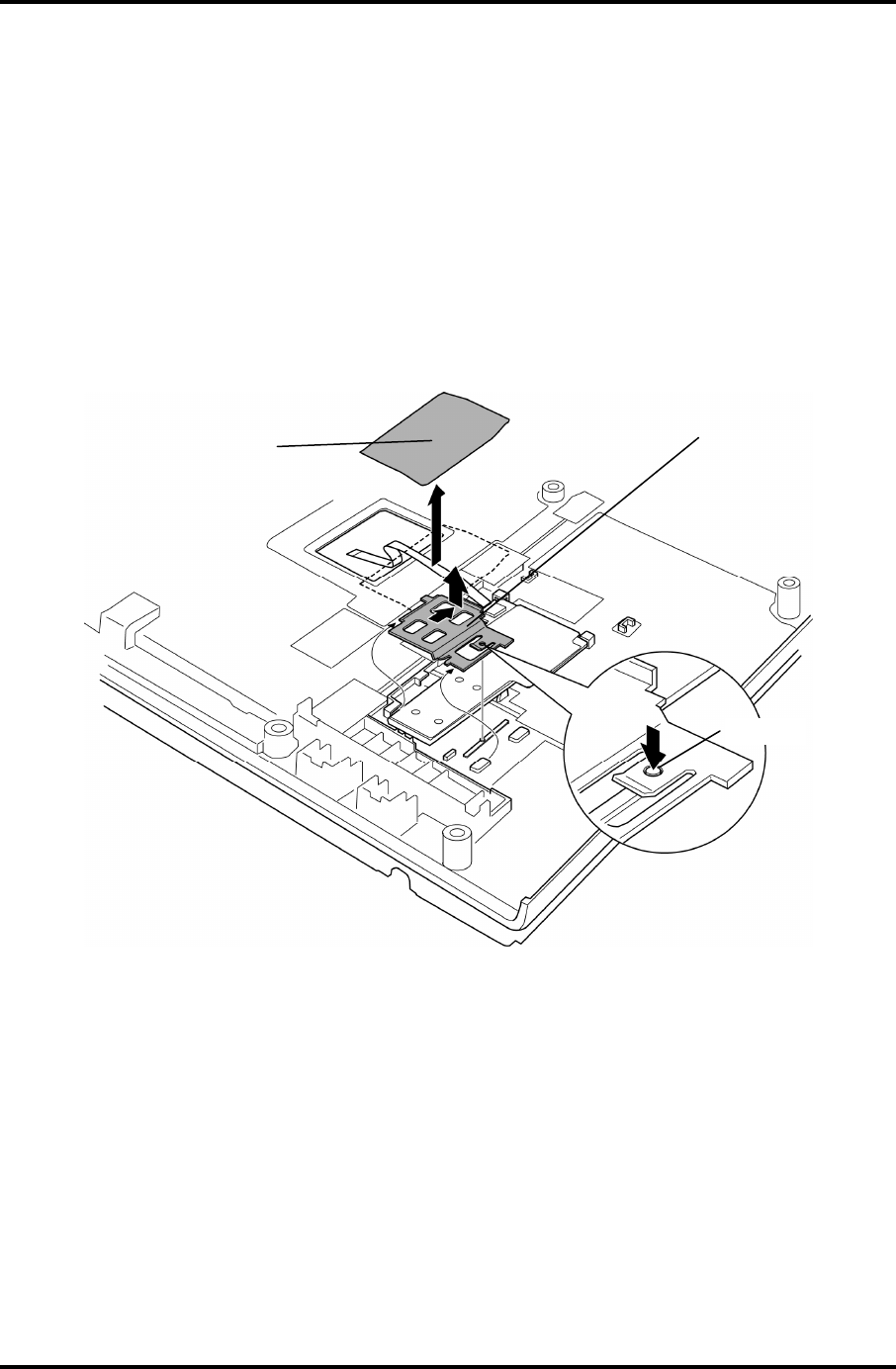

Figure 4-26 Removing the fingerprint sensor board hold plate
