Connecting to a TV
Connect the DVD player to your TV.
For details of output sound, see
43
.

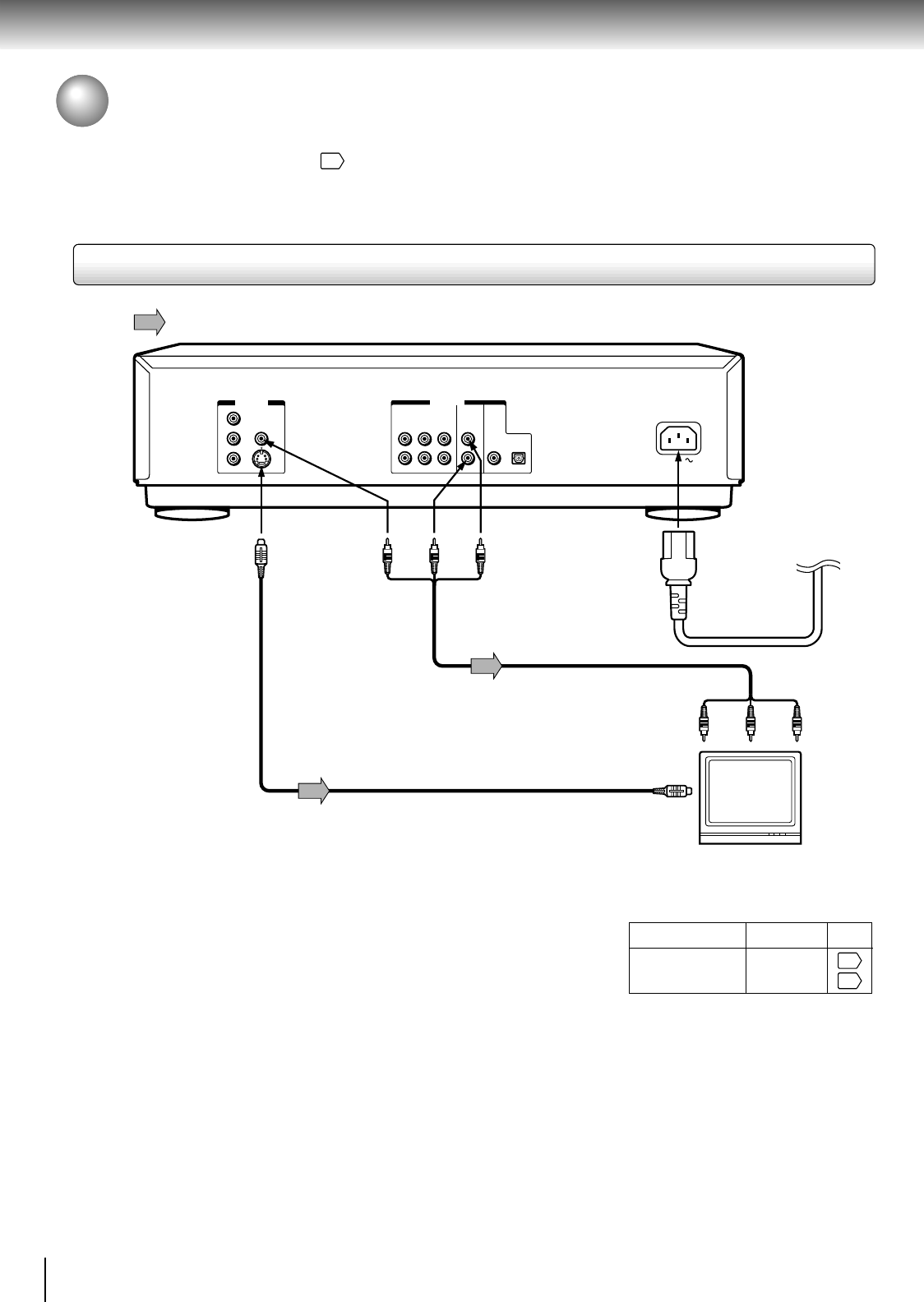

Connecting to a TV
To S VIDEO OUT
To VIDEO OUT
To 2CH AUDIO OUT
(red) (white)(yellow)
Signal flow
To wall outlet
(yellow) (red)
(white)
To S video input
Audio/video cable (supplied)
S video cable (not supplied)
To audio inputs
If the TV has an S video input, connect the
DVD player with an S video cable. When
using an S video cable, do not connect the
yellow video cable.
Notes
• Refer to the owner’s manual of the connected TV as well.
• When you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
• If your television set has one audio input, connect the DVD player to a Y cable adapter (not supplied) and then connect to
your TV.
• Connect the DVD player directly to your TV. If you connect the DVD player to a VCR, TV/VCR combination or video selector,
the playback picture may be distorted as DVD video discs are copy protected.
• Make the following setting.
On-screen display
Select:
Page
“Analog 2ch”
“Audio Out Select”
TV or monitor with
audio/video inputs
To video input
