3. CONTROL ELEMENTS
3. CONTROL ELEMENTS

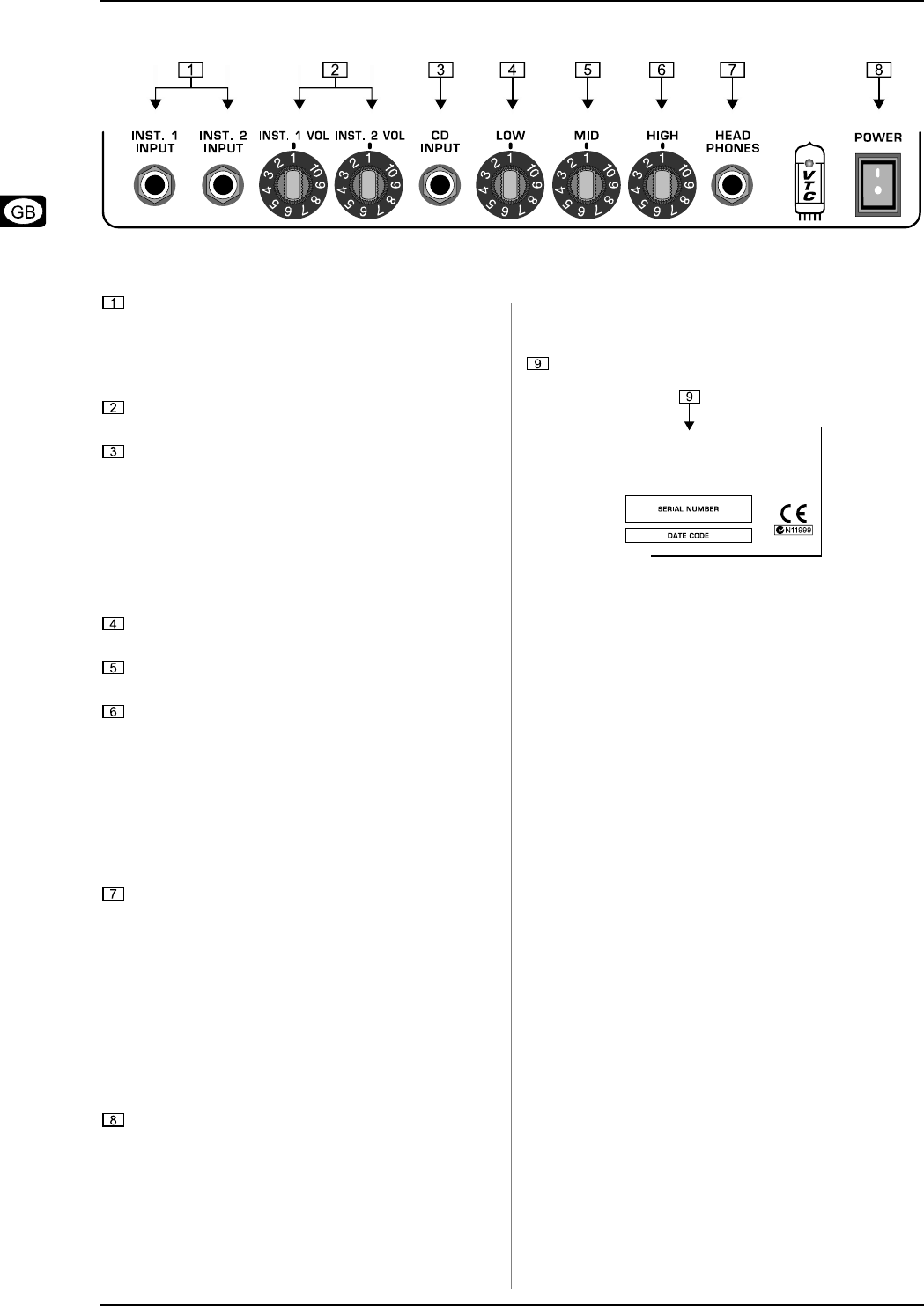

Fig. 3.1: Control elements on the front panel
Connect your keyboard to the INST. 1 INPUT connector,
using a standard instrument cable equipped with 1/4" TS
connectors.
The second instrument input (INST. 2 INPUT) can of course
be used to connect a second keyboard or a drum computer.
The volume of both instrument channels can be adjusted
using the INST. 1 VOL and INST. 2 VOL control.
Use the CD INPUT to connect the output of your CD player,
tape deck, CD or MD walkman. This way you can play
along to music or keyboard tutorial CDs.
This connector is a 1/4" TRS jack. If your CD player is
equipped with cinch outputs, youll need an adapter cable,
which you can buy at your local music shop. Illustration 4.3
in chapter 4. AUDIO CONNECTIONS shows you what
kind of adapter to buy. You can also use a mono cable (fig.
4.4). This will not damage your CD player or keyboard amp.
The LOW control allows you to boost or cut the low-
frequency range.
With the MID control you can boost or cut the mid-range
frequencies.
The HIGH control adjusts the high-frequency range.
+ With all the settings the following applies: Adjusting
the tone settings on your KT108 lets you refine the
sound of your keyboard; for example, you can add
more depth to a bass sound, or you can bring out
the strings upfront by increasing the mids.
Sometimes more neutral settings are desired in
order to preserve the character of the original
sound.
The HEADPHONES jack is for headphones. When you
plug in your headphones, the built-in loudspeaker is muted.
+ The headphone signal can also be routed to a mixing
console or sound reinforcement system. Connect
the headphones output on your KT108 to the line
input (LINE IN) on the console (for example,
BEHRINGER EURORACK UB1222FX-PRO). Please use a
mono cable for this application.
+ Some headphones produce distortion if the volume
level is too high. Please cut back the volume control
until the distortion disappears.
Use the POWER switch to switch on your KT108. The
POWER switch should be set to Off before you connect
your keyboard amp to the mains.
+ Please note: The POWER switch does not disconnect
the unit from the mains. Unplug the power cord
when you dont want to use the unit for some time.
SERIAL NUMBER.
Fig.: 3.2 Rear panel: serial number
