ULTRATONE KT108
5. SPECIFICATIONS
BEHRINGER is constantly striving to maintain the highest professional standards. As a
result of these efforts, modifications may be made from time to time to existing products without
prior notice. Specifications and appearance may differ from those listed or shown.
4. AUDIO CONNECTIONS
All of your amps inputs and outputs are laid out as 1/4"
connectors. More information about the connectors can be found
in chapter 5. SPECIFICATIONS.
+ Please keep in mind that all the equipment has to
be grounded at all times. For your own protection,
never change or disable the grounding on your
equipment or on the cables! The unit shall always
be connected to the mains socket outlet with a
protective earthing connection.

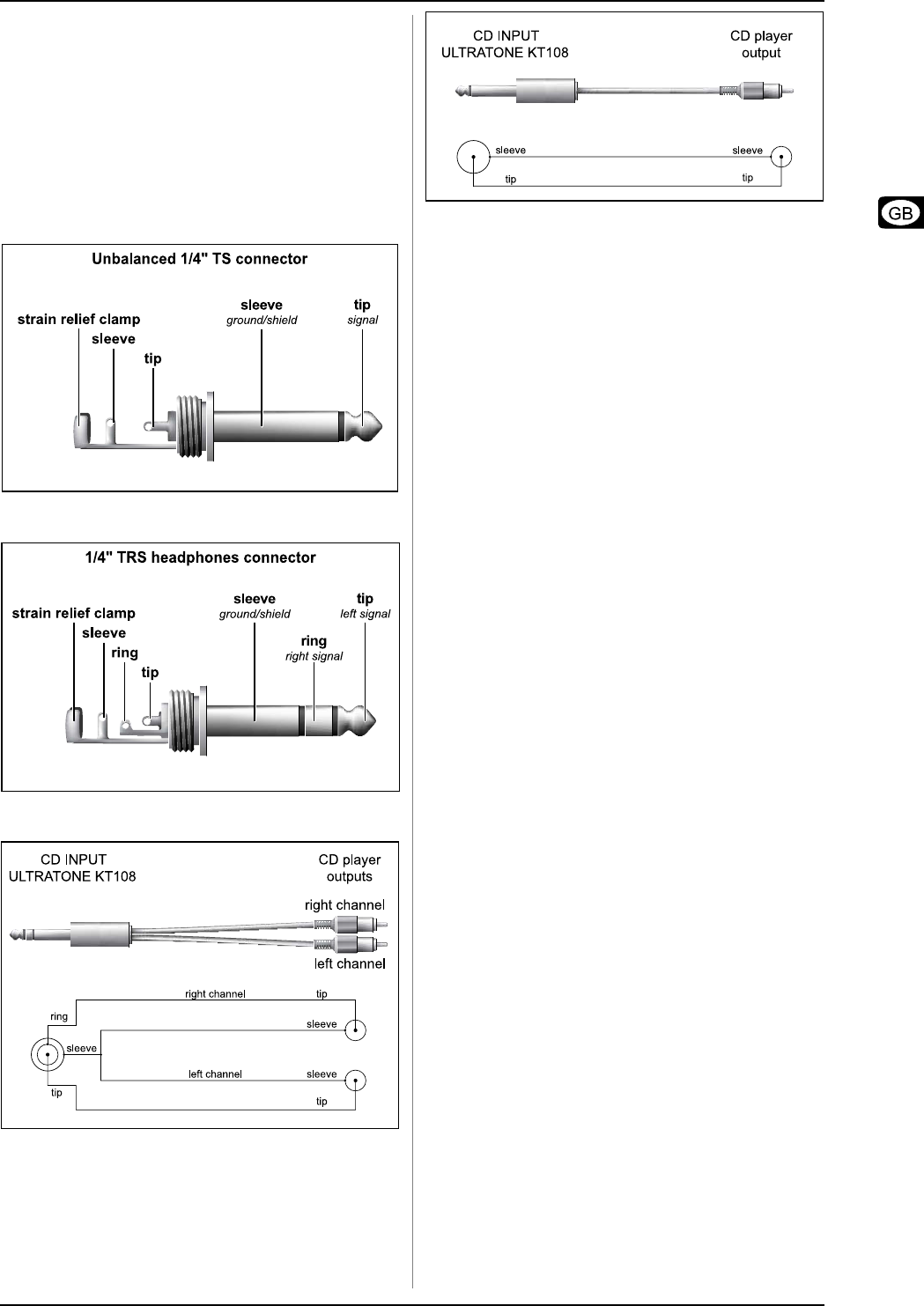

Fig. 4.1: 1/4" TS plug for the INSTRUMENT INPUT (mono)
Fig. 4.2: 1/4" TRS plug for headphones and CD input
Fig. 4.3: Stereo adapter cable
Fig. 4.4: Mono adapter cable
5. SPECIFICATIONS
AUDIO INPUTS
Keyboard input 1/2
Connector 1/4" TS mono connectors
CD input
Connector 1/4" TRS stereo connector
AUDIO OUTPUT
Headphones output
Connector 1/4" TRS stereo connector
SYSTEM SPECIFICATIONS
Power amp output 15 Watts
LOUDSPEAKER
Type 8" dual-cone full-range
loudspeaker
Impedance 4 Ω
Power rating 20 Watts
POWER SUPPLY
Mains voltage
USA/Canada 120 V~, 60 Hz
U.K./Australia 230 V~, 50 Hz
Europe 230 V~, 50 Hz
Japan 100 V~, 50 - 60 Hz
DIMENSIONS/WEIGHT
Dimensions
(H x W x D) approx. 322 mm (13 1/8")
x 357 mm (14 1/16")
x 162 mm (6 3/8")
Weight approx. 5 kg (10 lbs.)
