EURORACK MXB1002
2. WIRING
Fig. 2.1: Various connector types

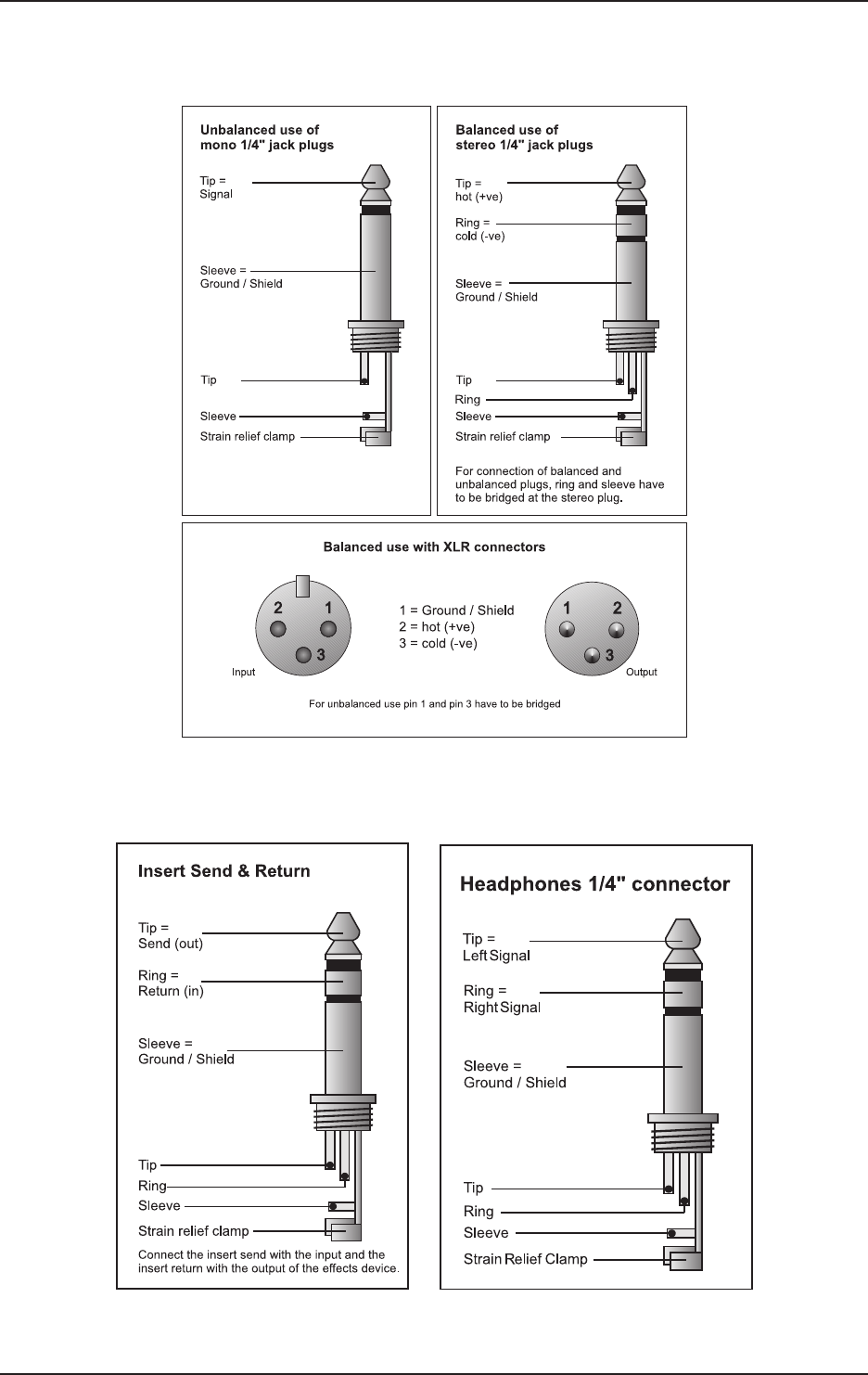

Fig. 2.2: Wiring diagram of insert cable and headphones plug
