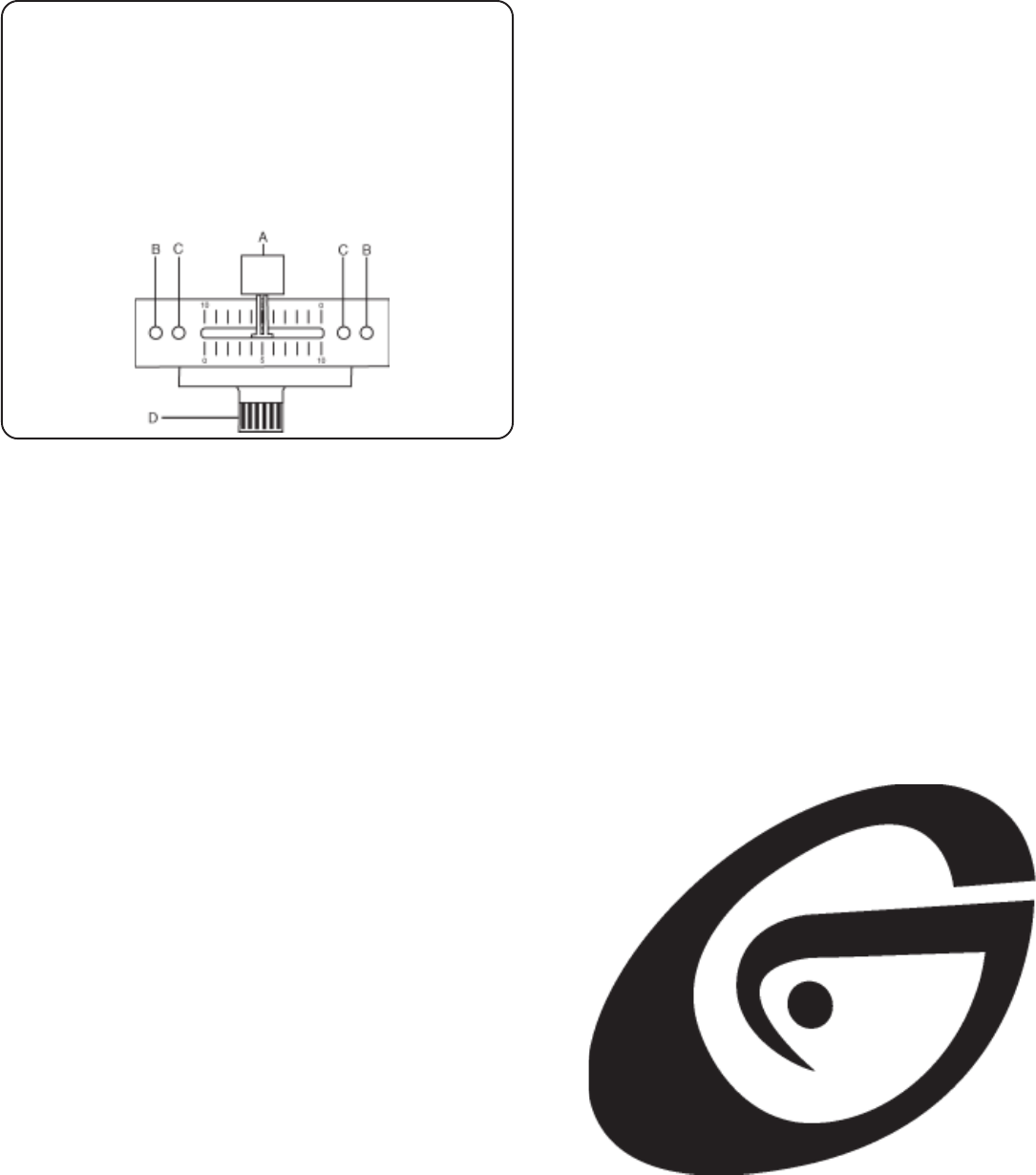

1. Unscrew the outside FADER PLATE SCREWS (B).
Do not touch the INSIDE SCREWS (C).
2. Carefully lift the fader and unplug the CABLE (D).
3. Plug the new fader into the cable and place it back in
the mixer.
4. Screw the fader to the mixer.
7. OUTPUT CONTROL SECTION: The level of the MASTER
OUT (31) is controlled by the MASTER (23) slide. The
Master TREBLE (20) and BASS (21) controls allow you to
adjust the output of channels 1-4.
NOTE: THE RECORD OUT (27) HAS NO LEVEL
CONTROL. THE LEVEL IS SET BY THE CHANNEL
SLIDES OF THE SELECTED CHANNEL.
8. TALKOVER SECTION: The purpose of the talkover section
is to allow the program playing to be muted so that the MIC
can be heard above the music. The MIC 1/TALKOVER
SWITCH (6) controls MIC 1 and has three settings. When
the MIC 1/TALKOVER SWITCH (6) is in the bottom
position, the MIC and talkover are off. When the MIC 1/
TALKOVER SWITCH (6) is in the center position MIC 1 is
on, the MIC 1 INDICATOR (7) will glow, but talkover is off.
When the MIC 1/TALKOVER SWITCH (6) is in the top
position, MIC 1 and talkover will be on and the volume of all
sources except the MIC input are lowered by 16dB. The
MIC LEVEL (16) controls the level of MIC 1.
9. CUE SECTION: By connecting a set of headphones to the
HEADPHONE (5) jack, you can monitor any or all of the
channels. Press the CUE ASSIGN (19) buttons for
channels 1-4 to select the channel or channels to be
monitored and their respective LED indicators will glow.
Use the CUE LEVEL (24) control to adjust the cue volume
without effecting the overall mix. By moving the CUE
PGM PAN (22) control to the left you will be able to monitor
the assigned cue signal. Moving the control to the right will
monitor the PGM (program) output.
10.DISPLAY: The DISPLAY (18) indicates the MASTER
output left and right levels.
SPECIFICATIONS:
INPUTS:
MIC 1..............................................1.5mV 2kOhm balanced
MIC 2 ............................................1.5mV 2KOhm balanced
Phono @ 1kHz...............................................2mV 47kOhm
Line...........................................................100 mV 27kOhm
OUTPUTS:
Amp/Booth................................................0 dB 1V 400Ohm
Max....................20V Peak to Peak
Rec..............................................................225mV 5kOhm
GENERAL:
Bass....................................................................... ± 12dB
Treble......................................................................± 12dB
Frequency Response..........................20Hz - 20KHz +/- 2dB
Distortion....................................................less than 0.02%
S/N Ratio...................................................better than 80dB
Talkover Attenuation....................................................-16dB
Power Source:............................Adapter-115V/15V AC 0.5A
..........................................................or 230V/15V AC 0.5A
Dimensions..................19”w x 3”d x 7”h (483 x 76 x 178 mm)
Weight.......................................................6.25lbs (2.84 kg)
