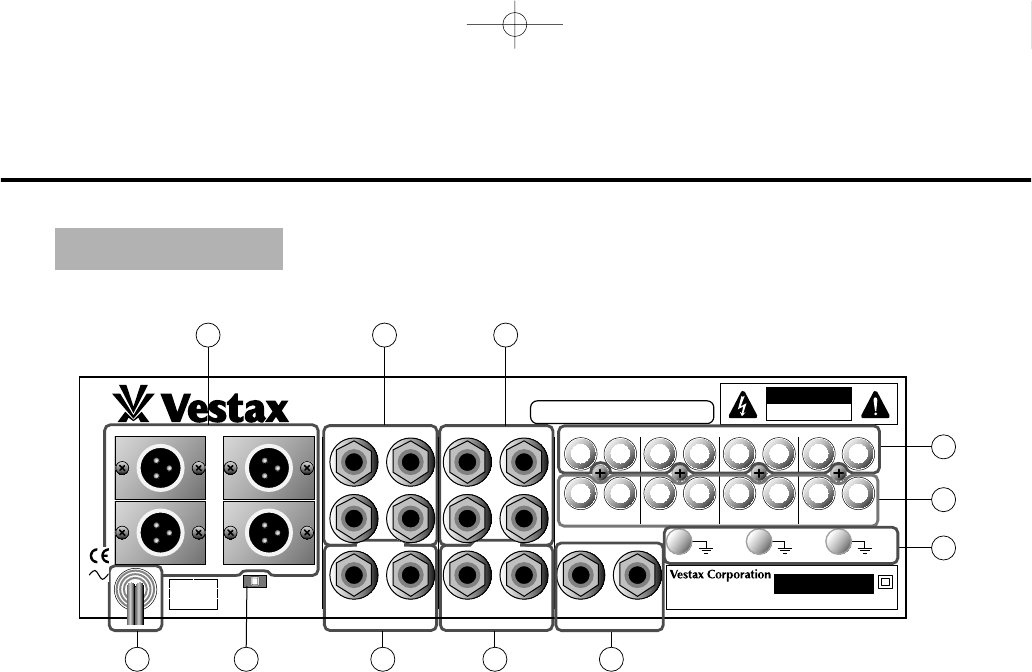

REAR PANEL
37
LINE IN 1, 3, 5, 7 (RCA)
They work the same as LINE IN 2, 4, 6, 8 (1).
38
PHONO IN 1, 2, 3, 4 (RCA)
Connects turntable output equipped with MM type
pickup cartridge. If MC type cartridge is used, a pre-
amp is required.
39
GROUND TERMINAL
Connects to ground lead of the turntable. This helps
to reduce noise and hum.
40
MIC 1, 2 (1/4" Phone)
Input jack for connecting the microphones.
41
AUX SEND/RETURN (1/4" Phone)
Connects to outboard effects such as Delay
machine. AUX SEND is located on pre-input fader.
42
CUE OUT (1/4" Phone)
When CUE ASSIGN(11) is depressed,the signal
comes out from this jack. It can be used for
sampling source output.
43
MASTER OUT 1, 2
(1/4" Phone, Unbalanced)
Connects to the input of power amplifier. These
jacks are Phone type for consumer applications. This
mixer has two pairs of MASTER OUT. And each
output level can be set separately. This means that
MASTER OUT (43) can be used for main output and
sub. For example, one for hall, the other for entrance.
44
BOOTH OUT (1/4" Phone)
This can be used for DJ booth monitor. Same signal
as HEADPHONES OUT comes out.
45
MASTER OUT 1, 2 (XLR, Balanced)
Connects to the input of power amplifier. These
connectors are XLR type for professional audio
applications. They works the same as Unbalanced
MASTER OUT 1, 2 (43). Pin No.3 for HOT.
46
AC POWER CABLE
Connects the plug to AC outlet on the wall.
47
BALANCE OUT LEVEL SWITCH
Used to select the output level of the MASTER
OUT 1.2.
PMC-55
50 / 60Hz 20W
AC100V
MADE IN JAPAN
SERIAL NO.
CAUTON
RISK OF ELECTRIC
SHOCK. DO NOT OPEN
WARNING;SHOCK HAZARD-DO NOT OPEN.
AVIS;RISQUE DE CHOC ELELCTRIQUE -NE PAS OUVRIR.
GND GND GND
LINE 1
PHONO 1
LINE 3
PHONO 2
LINE 5
PHONO 3
RLRLRLRL
R
PIN 1 GND
PIN 2 HOT
PIN 3 COLD
L
RL
RLRL
LINE 7MASTER 1
MASTER 1
MASTER 2
BAL OUT LEVEL
-20 -10 0(dB)
AUX SEND
MASTER 2
AUX RTN
BOOTH OUT
CUE OUT
PHONO 4
MIC 2 MIC 1
PROFESSIONAL MIXING CONTROLLER
46 44
43 4145
42 4047
39
38
37
