Disk Drives 4–3
Operational Status (Continued)
Drive not being accessed
Drive is being rebuilt or Array Capacity expansion in progress
Drive Operational
D
O NOT REPLACE DRIVE
Drive not being accessed
Drive configured as part of an array
Drive Operational
D
O NOT REPLACE DRIVE
Drive selected using the Array Configuration Utility.
D
O NOT REPLACE DRIVE
Drive is being accessed or spinning-up.
Replacement drive to be rebuilt, or the drive is an inactive spare disk, or drive is
spinning up during POST, or the SCSI controller cannot control LED. The drive is
Operational
D
O NOT REPLACE DRIVE
Drive is being accessed
Drive is being rebuilt or Array Capacity expansion in progress
Drive Operational
D
O NOT REPLACE DRIVE
Drive is being accessed
Drive configured as part of an array
Drive Operational
D
O NOT REPLACE DRIVE
Fault Status
Drive not being accessed
Drive failure
Drive failure
OK
TO REPLACE DRIVE

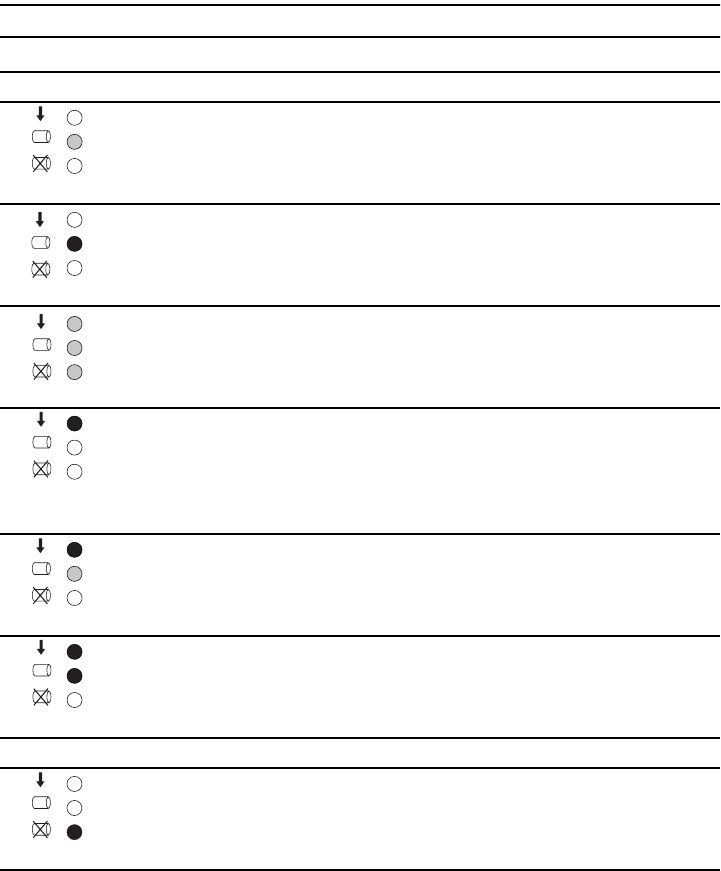

Table 4–1 Disk LED Status Displays (Continued)
LEDs Status
