KP915GV Product Manual
123

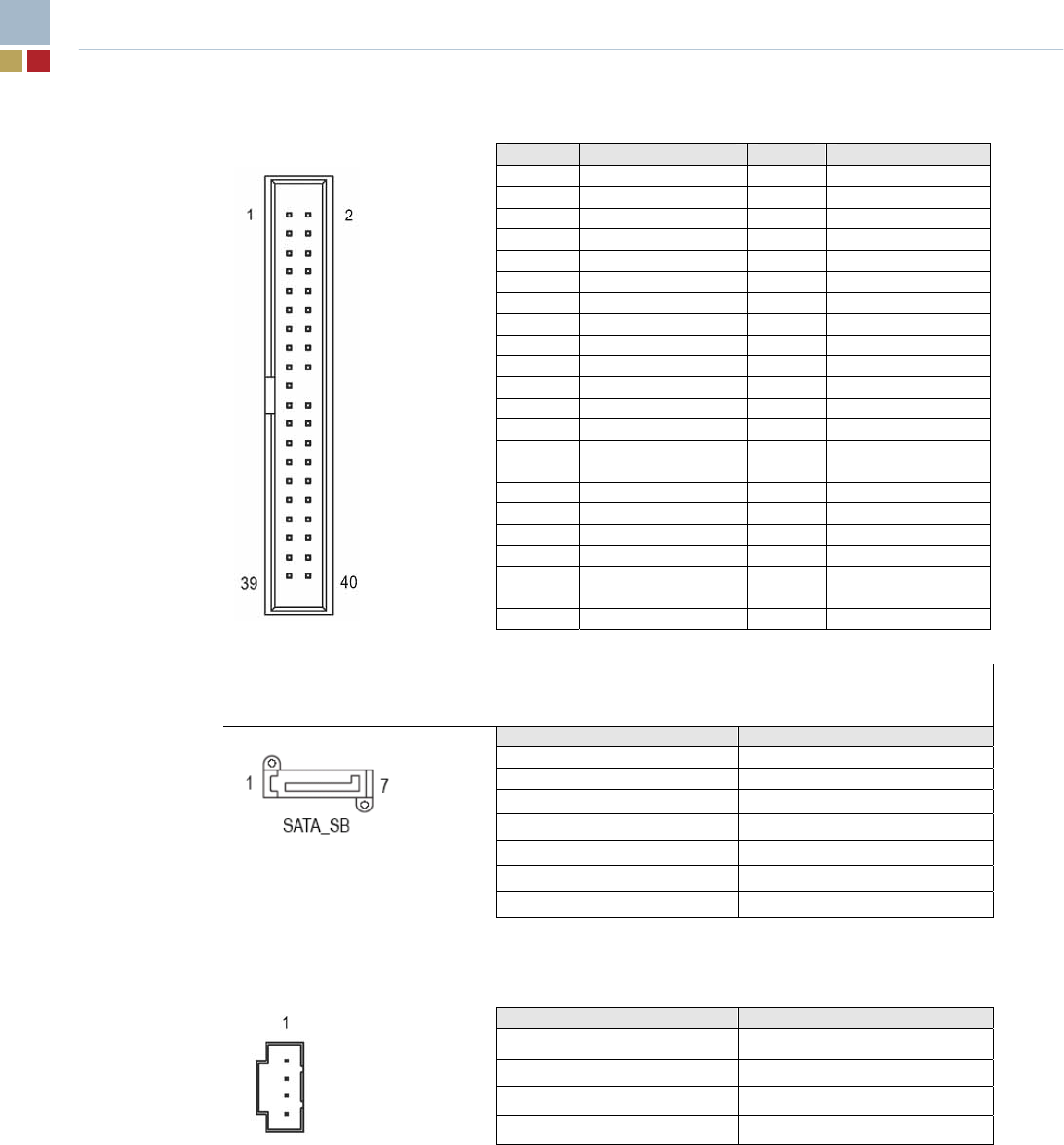

Table 30. ATA/100 Hard Drive Disk Connector
Pin SIGNAL Pin SIGNAL
1 HDRST# 2 GND
3 Device data 7 4 Device data 8
5 Device data 6 6 Device data 9
7 Device data 5 8 Device data 10
9 Device data 4 10 Device data 11
11 Device data 3 12 Device data 12
13 Device data 2 14 Device data 13
15 Device data 1 16 Device data 14
17 Device data 0 18 Device data 15
19 GND 20 KEY (no pin)
21 IDE REQ 22 GND
23 I/O WRITE 24 GND
25 I/O READ 26 GND
27 I/O RDY 28
Pull down for
always master
29 IDE ACK 30 GND
31 IRQ14 32 NC
33 Device address 1 34 NC
35 Device address 0 36 Device address 2
37
Device chip
select S1
38
Device chip
select S3
39 HDDLED 40 GND
Table 31. SATA Disk Connector
Pin SIGNAL
1 GND
2 A+ transmit
3 A- transmit
4 GND
5 B-receive
6 B+ receive
7 GND
Table 32. 3X Internal Audio Headers
Pin SIGNAL
1 LEFT
2 GND
3 GND
4 RIGHT
