The APD is installed.
13
The “InstallShield Wizard Complete” screen appears. Click the [Finish]
button to finish installation.
14

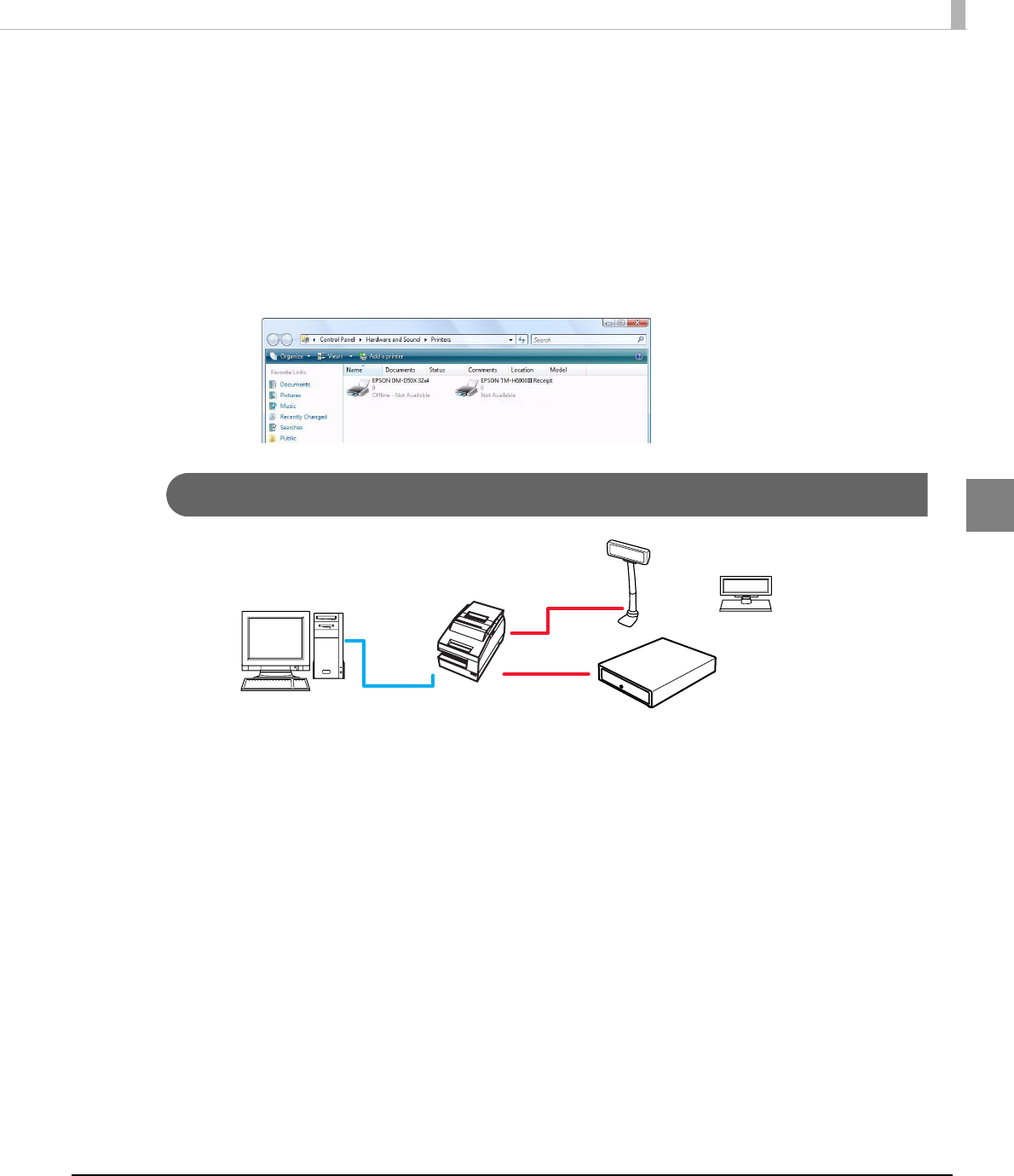

In [Start] - [Control Panel] - [Hardware and Sound] - [Printers], check
that the specified printer driver and Customer Display driver are
correctly installed.
Installation when using Y-connection
The Y-connection is a connection method to connect the computer and the Customer Display via
the TM printer.
The available interfaces of the computer and the TM printer are USB and serial. The TM printer
and the Customer Display should be connected using the serial interface, and the modular cable
of the Customer Display should be connected to the DM-D connector on the printer.
Set 19200 bps for the communication speed for the Customer Display.
When turning on the Customer Display and the TM printer, first turn on the Customer Display,
and then turn on the printer.
For information on DIP switch / Memory switch settings on the Customer Display and the TM
printer, see their Technical Reference Guide supplied with your model.
