Jams
Use this illustration to troubleshoot paper jams in the printer. For instructions on clearing paper jams,
see
Jams.
NOTE All areas of the MFP that might need to be opened to clear jams are equipped with green
handles.

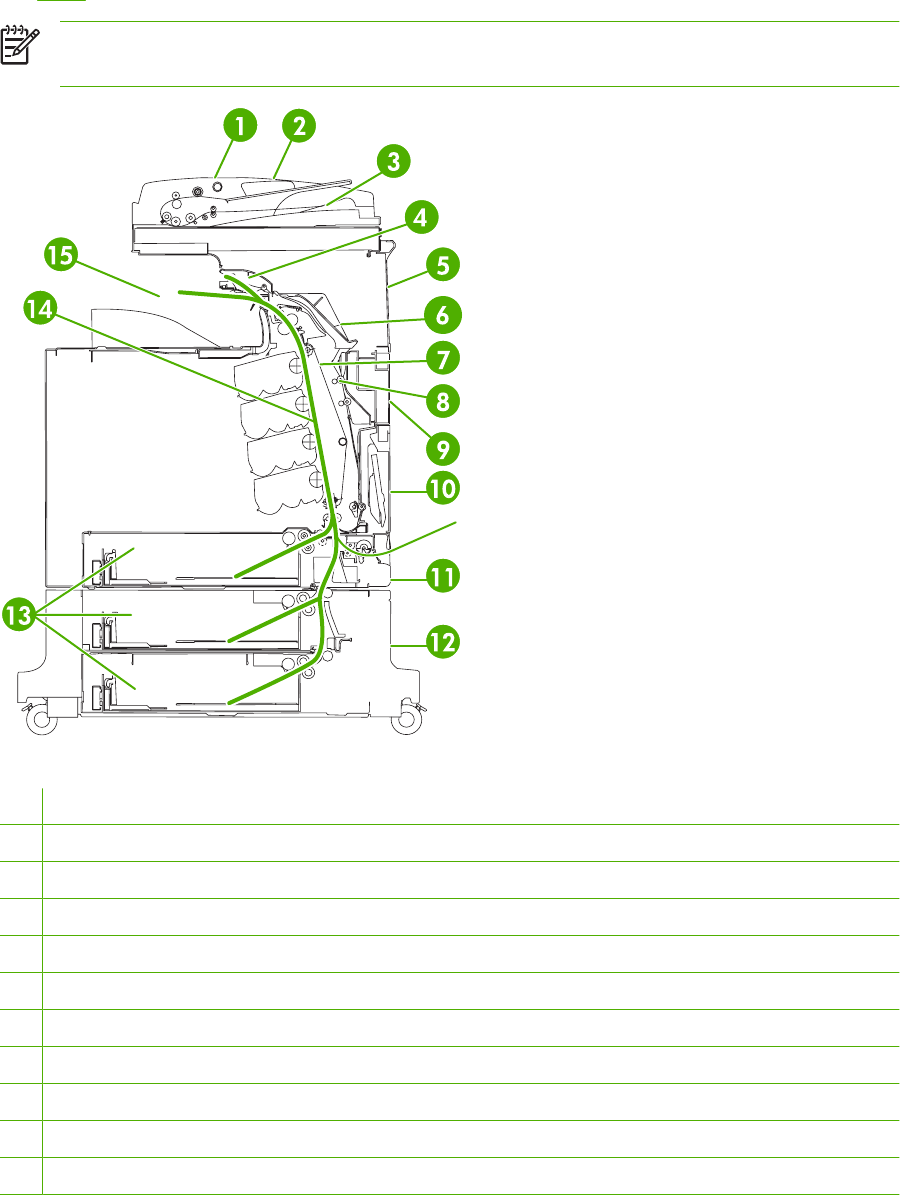

Figure 16-1 Paper jam locations
1 ADF access cover
2 ADF input tray
3 ADF output tray
4 Duplexer cover
5 Upper right door
6 Fuser cover
7 Transfer unit
8 Duplex paper path
9 Middle right door
10 Tray 1 (multipurpose tray)
11 Drawer below tray 1
ENWW Jams 239
