2 Cabling Storage Devices and Setting SCSI Addresses
19
English
Storage System Layout
In the configuration drawings in this section, the SCSI device shelves and the
hot-swap cages are mapped as shown in Figure 2-3.
SCSIDeviceShelf
SCSIDeviceShelf
Hot-Swap
Cage
Hot-Swap
Cage

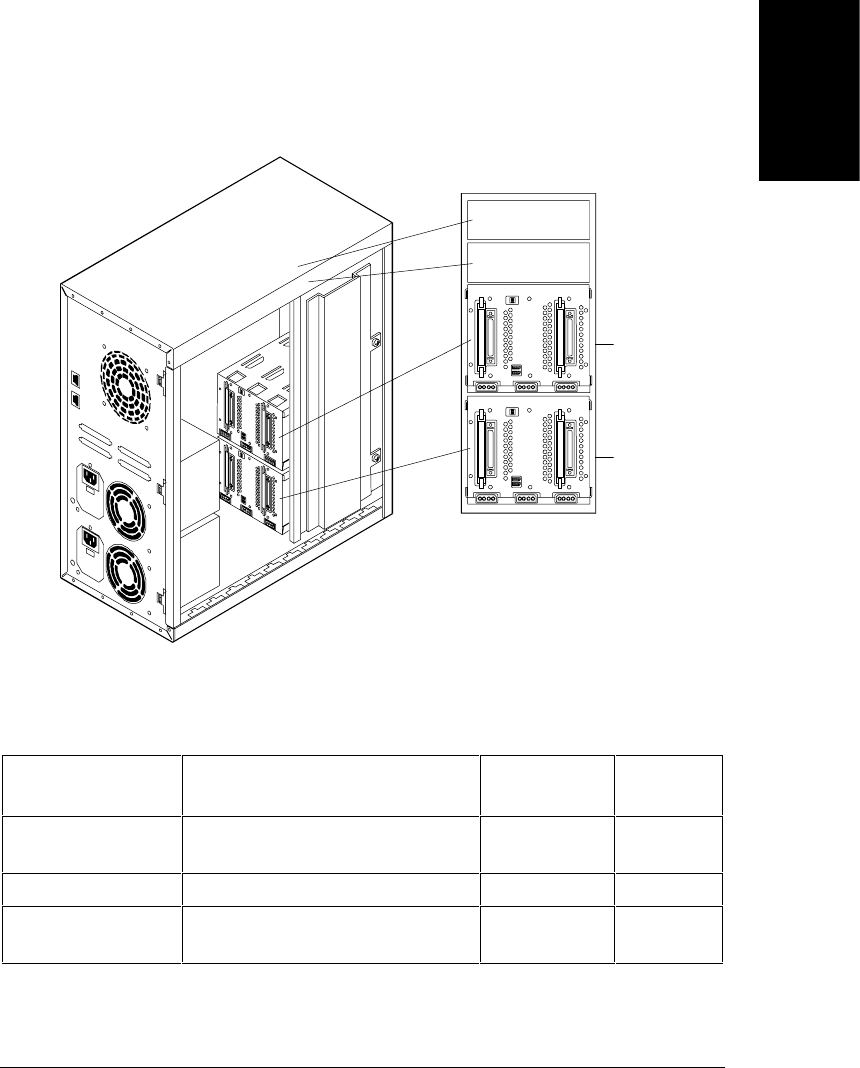

Figure 2-3. Storage System Map
Only the internal HP cables shown in Table 2-4 are supported.
Table 2-4. Cabling Diagram Legend
Cabling
Diagram Label Description
Part
Number
Number
Included
C11 Narrow SCSI (50 pin) cable
with built-in terminator.
5182-6748 1
C14 Fast-Wide SCSI (68 pin) cable. 5182-6747 1
C20 Fast-Wide SCSI (68 pin) cable
with external connector.
5182-9326 2
