2. Remove the front bezel by releasing the two tabs and pivoting the bezel
forward to remove completely.
3. Disconnect the front audio and USB assembly cables from the system board.
See “Identifying parts on the system board” on page 9.
4. Note the front audio and USB assembly cables routing and remove the screw
that secures the assembly to the chassis.
5. Remove the failing front audio and USB assembly from the chassis.
6. Install the new front audio and USB assembly into the chassis and secure it
with the screw.
7. Connect the front audio and USB assembly cables to the system board.

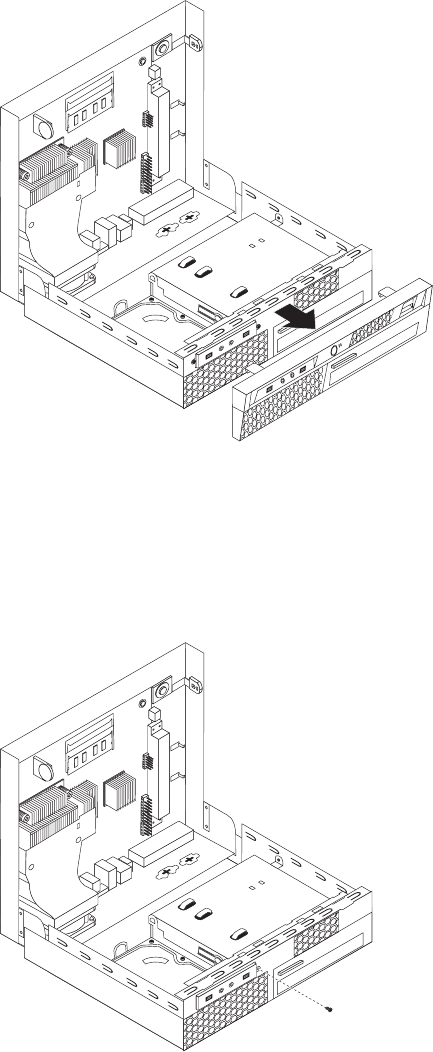

Figure 9. Removing the front bezel
Figure 10. Removing the front audio and USB assembly
Chapter 3. Installing options and replacing hardware 15
