User’s Manual of WGSW-24040 / WGSW-24040R
SGSW-24040 / SGSW-24040R
122

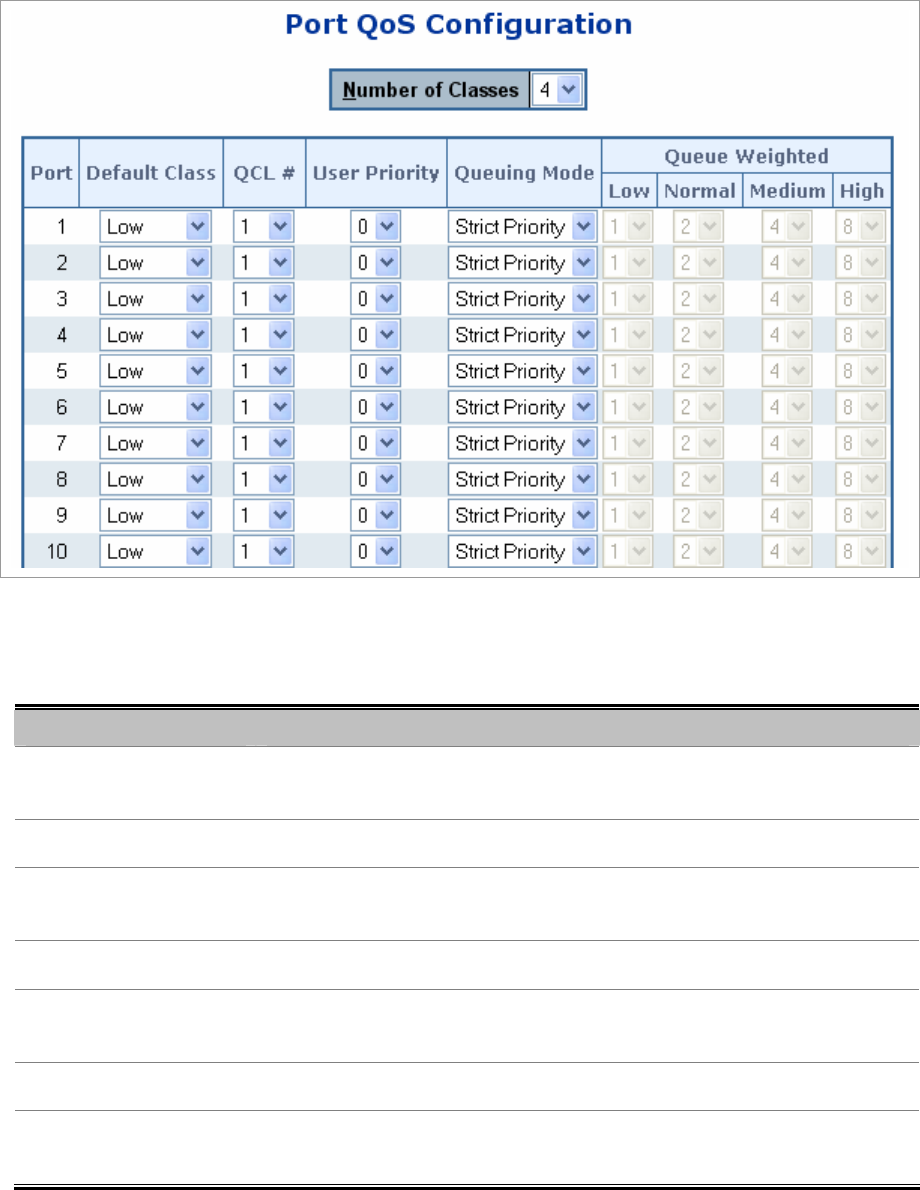

Figure 4-8-3 Port QoS Configuration page screenshot
The page includes the following fields:
Object Description
Number of Classes
Configure the number of traffic classes as "1", "2", or "4".
The default value is "4".
Port
The logical port for the settings contained in the same row.
Default Class
Configure the default QoS class for the port, that is, the QoS class for frames not
matching any of the QCEs in the QCL.
QCL #
Select which QCL to use for the port.
User Priority
Select the default user priority for this port when adding a Tag to the untagged
frames.
Queuing Mode
Select which Queuing mode for this port.
Queue Weighted
Setting Queue weighted(Low:Normal:Medium:High) if the "Queuing Mode" is
"Weighted".
