9-6 501440 Rev. G

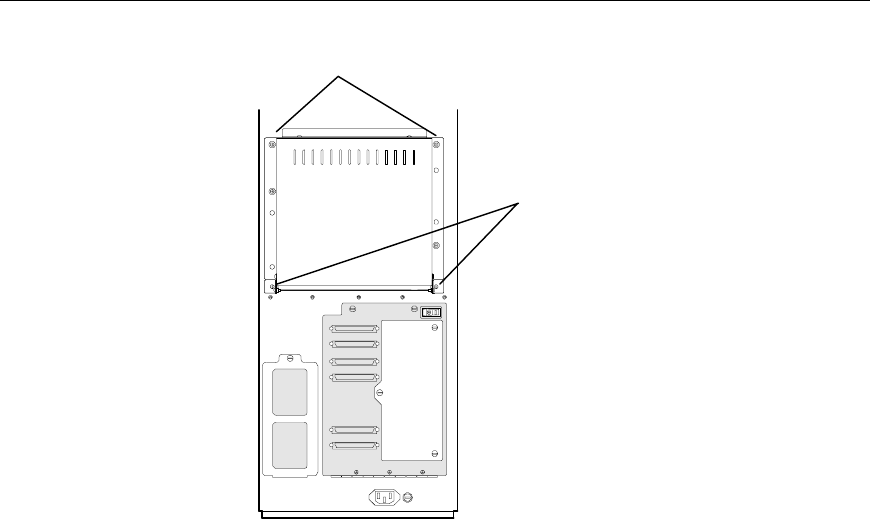

Screws that secure
the FCO hinges (2)
Top 2 Captive Screws in the FCO
Figure 9-6 Screw Locations in an FCO (Type A Shown)
12. Remove the two screws from the hinges on the FCO. Save the screws for future
use.
13. While supporting the FCO with one hand, loosen the two captive screws at the
top of the FCO.
14. Carefully remove the FCO unit from the rear of the library.
9.3 Packing the Fibre Channel Option
1. Using the packing material that came with the FCO, place the FCO into the
shipping carton and seal with shipping tape.
Repacking
