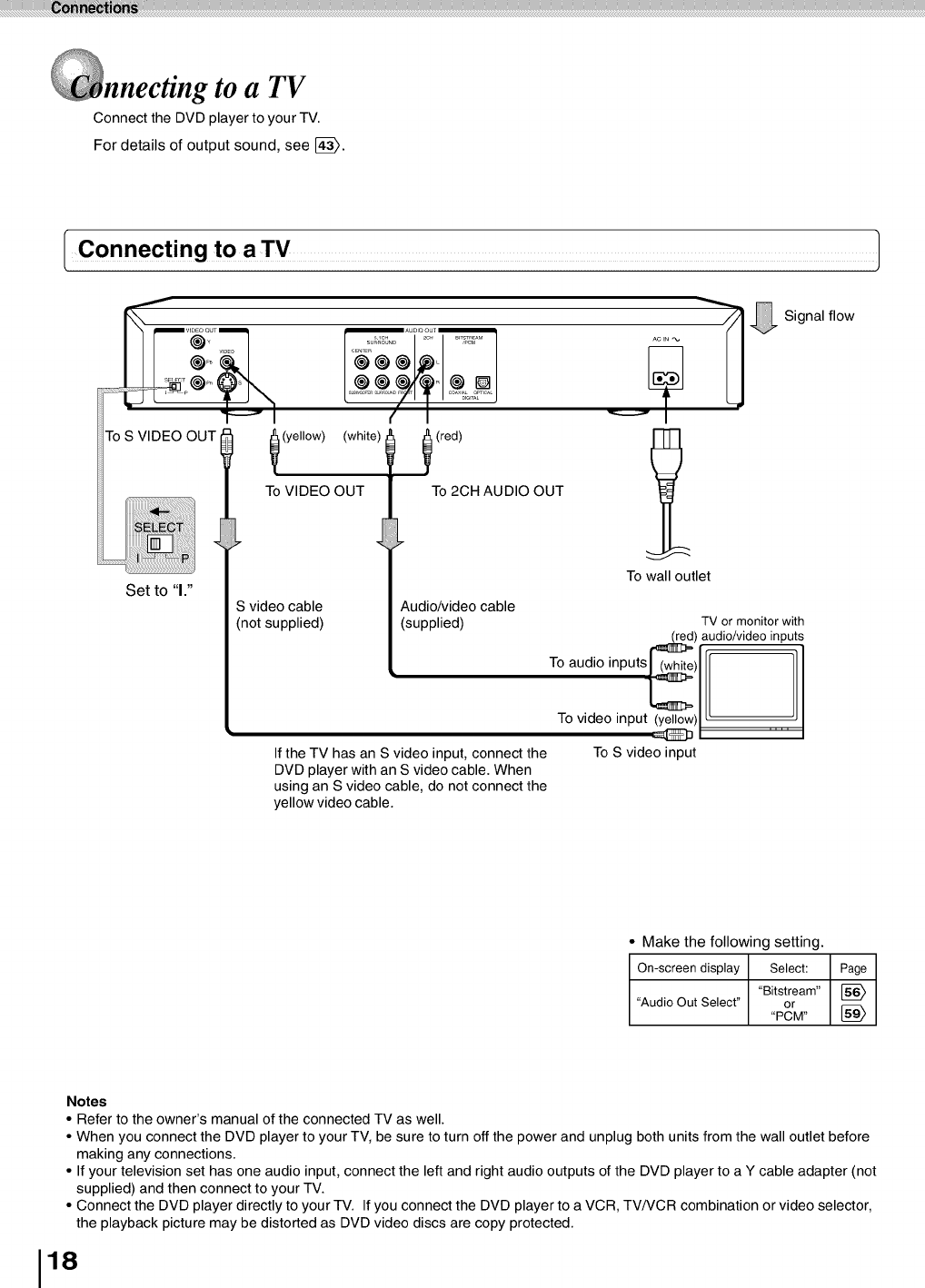

to a TV
Connect the DVD playerto yourTV.
For details of output sound, see E_.
Connecting to a TV 1
v o:JT
ToS VIDEO OUT _ (yellow)
ToVIDEO OUT
L
(white) _ (red)
To2CHAUDIO OUT
Audio/video cable
(supplied)
=
S video cable
(not supplied)
Set to '1."
Ifthe TV has an S video input, connect the
DVD player with an S video cable. When
using an S video cable, do not connect the
yellow video cable.
Towalloutlet
TV or monitor with
) audio/video inputs
Tovideo input (yellow)l
To S video input
Signal flow
Make the following setting.
On-screen display Select: Page
"Bitstream" [_
"Audio Out Select" or
"PCM" [_
Notes
• Refer to the owner's manual of the connected TV as well.
• When you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before
making any connections.
• If your television set has one audio input, connect the left and right audio outputs of the DVD player to a Y cable adapter (not
supplied) and then connect to your TV.
• Connect the DVD player directly to your TV. If you connect the DVD player to a VCR, TVNCR combination or video selector,
the playback picture may be distorted as DVD video discs are copy protected.
